Release Info
| Catalog ID | CAP-BE |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 15, 1993 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Famicom Controller |

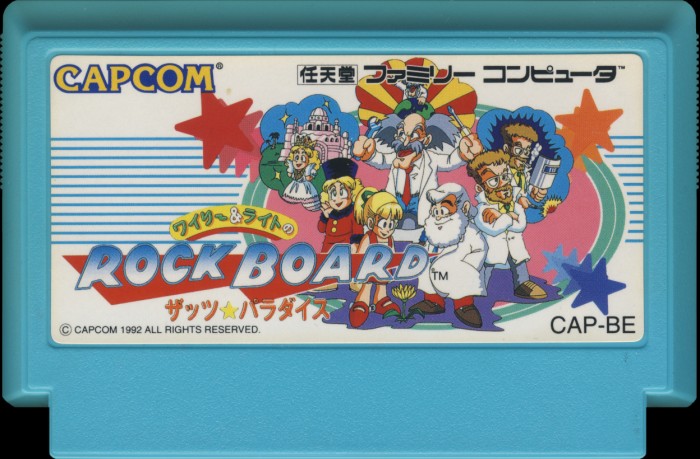

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Cyan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-BE |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-TGROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9249 |
| Est First Run | December 1992 |
| PCB Class | HVC-TGROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-BE-0 PRG | 256 KB | 23F4B48F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W82 | Mask ROM 256 KB | DIP-32 | 9249 XY012 | 9249 | |
| U2 CHR-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9214 EJ | 9214 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9248 7 A | 9248 |
