Release Info
| Catalog ID | NAT-N1 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 10, 1988 |
| Publisher | Natsume |
| Developer | Natsume |
| Players | 1 |
| Peripherals | Famicom Controller |

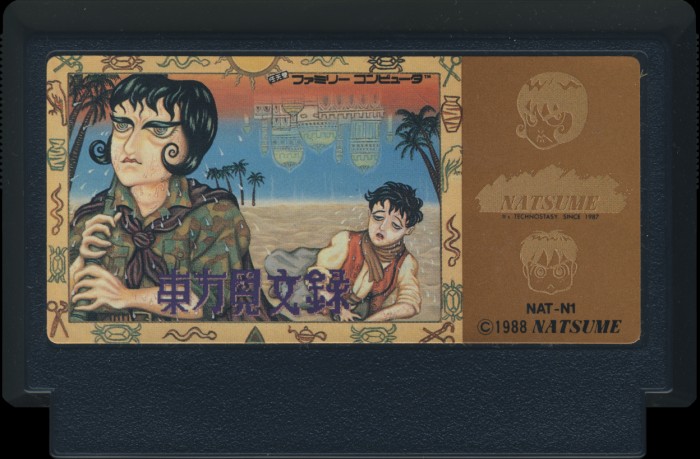

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | NAT-N1 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

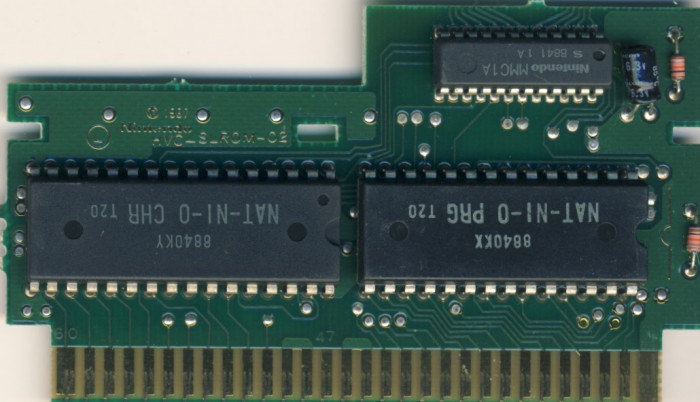

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8841 |
| Est First Run | October 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NAT-N1-0 PRG | 128 KB | 8CEA87C5 | 1 |
| CHR0 | NAT-N1-0 CHR | 128 KB | 50C58415 | 1 |
| N/A | ROMs Combined | 256 KB | 97BC4585 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8840 KX | 8840 | ||
| NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8840 KY | 8840 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8841 1 A | 8841 |
