Release Info
| Catalog ID | HCT-QZ/008 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 2, 1990 |
| Publisher | Hect |
| Developer | TOSE Software |
| Players | 1 |
| Peripherals | Famicom Controller |

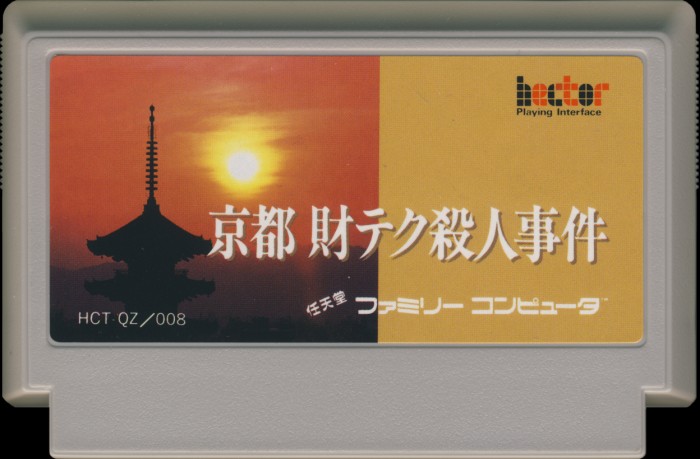

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HCT-QZ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

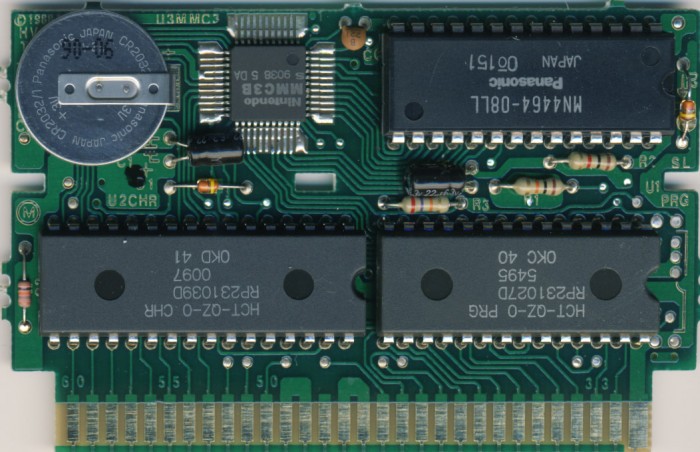

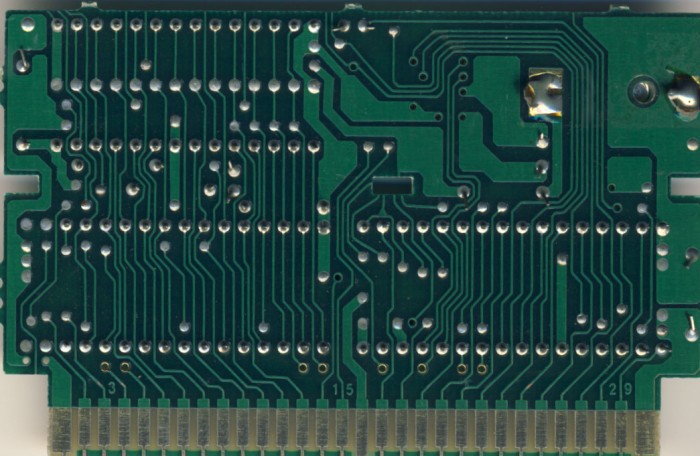

PCB Properties
| Name | HVC-TKROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9040 |
| Est First Run | October 1990 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HCT-QZ-0 PRG | 128 KB | 57C12C17 | 1 |
| CHR0 | HCT-QZ-0 CHR | 128 KB | BD284093 | 1 |
| N/A | ROMs Combined | 256 KB | 028374F2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 5495 | Mask ROM 128 KB | DIP-28 | 0KC 40 | 9040 | |
| U2 CHR | Ricoh | RP231039D 0097 | Mask ROM 128 KB | DIP-32 | 0KD 41 | 9040 | |
| U3 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9038 5 DA | 9038 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 0 51 | 9040 |
