Release Info
| Catalog ID | SAN-CQ |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 29, 1988 |
| Publisher | Jaleco |
| Developer | Aicom |
| Players | 1 |
| Peripherals | Famicom Controller |

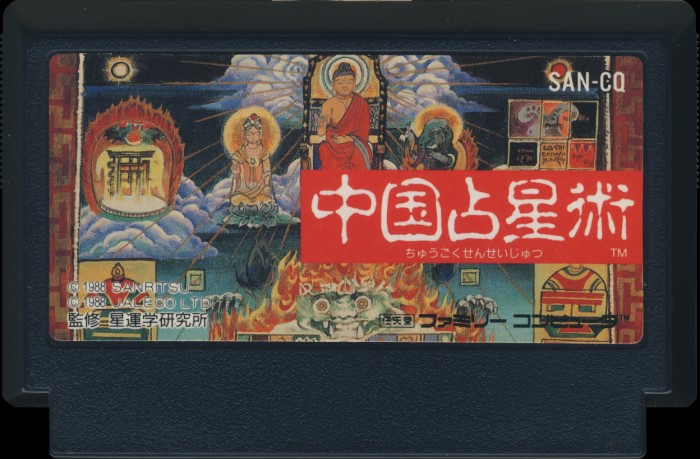

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SAN-CQ |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8846 |
| Est First Run | November 1988 |
| PCB Class | HVC-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SAN-CQ-0 PRG | 128 KB | F64CB545 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5300 | Mask ROM 128 KB | DIP-28 | 8L2 E4 | 8846 | |
| U2 CHR RAM | NEC | D4364C-12L | SRAM 8 KB | DIP-28 | 8612 A3009 | 8612 | |
| U3 HC161 | Hitachi | HD74HC161P | 74-161 Series | DIP-16 | 8C2 T | 8811 | |
| U4 HC32 | Hitachi | HD74HC32P | 74-32 Series | DIP-14 | 8D1 T | 8814 |
