Release Info
| Catalog ID | TDF-96 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 26, 1991 |
| Publisher | Toei Animation |
| Developer | Scap Trust |
| Players | 1 |
| Peripherals | Famicom Controller |

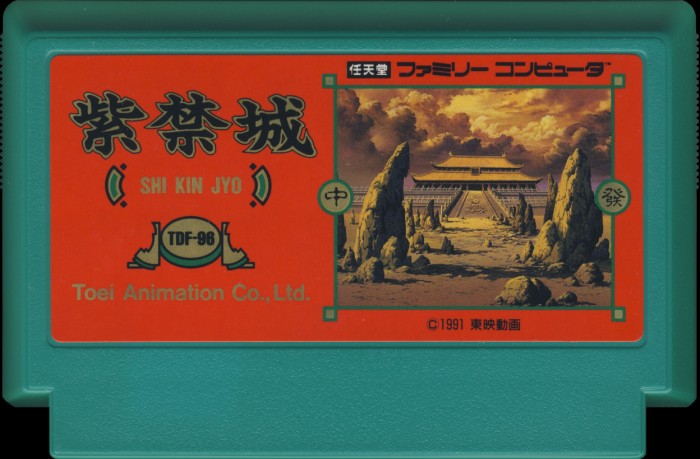

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TDF-96 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |
PCB Properties
| Name | HVC-SGROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9110 |
| Est First Run | March 1991 |
| PCB Class | HVC-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TDF-96-0 PRG | 128 KB | 9B53F848 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 6633 | Mask ROM 128 KB | DIP-28 | 1CB K1 N | 9110 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9040 M5 | 9040 | |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9044 B3040 | 9044 |
