Release Info
| Catalog ID | KSC-IN |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 20, 1987 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | Famicom Controller |

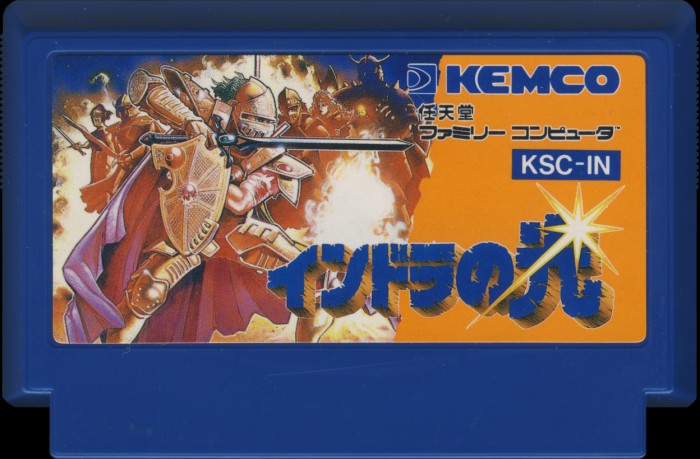

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-IN |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SNROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8739 |
| Est First Run | September 1987 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-IN-0 PRG | 128 KB | 174F860A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8739 KX | 8739 | |
| CHR | Sony | CXK5864PN-15L | SRAM 8 KB | DIP-28 | 7I 35 | 8736 | |
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8739 A | 8739 | ||
| Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 7H 31 | 8732 |
