Release Info
| Catalog ID | NES-CI-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | 1985 |
| Publisher | Jaleco |
| Developer | Hect |
| Players | 2 |
| Peripherals | NES Controller |

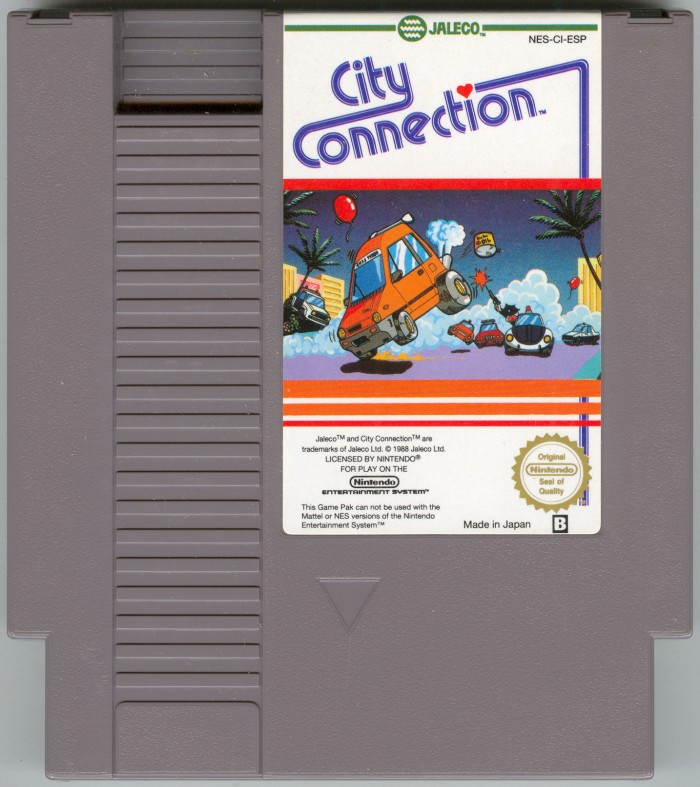

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CI-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

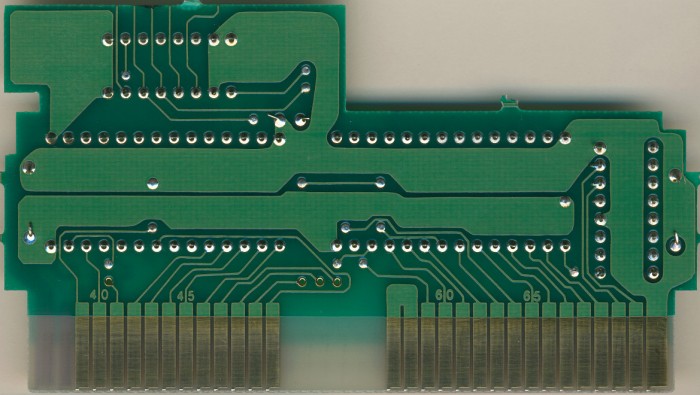

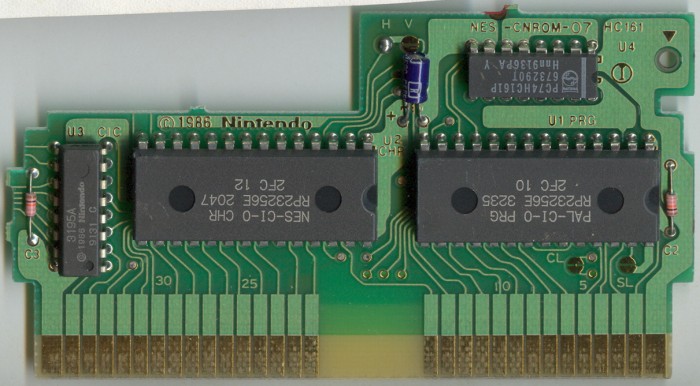

PCB Properties
| Name | NES-CNROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9223 |
| Est First Run | June 1992 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-CI-0 PRG | 32 KB | BBB3DE0A | 1 |
| CHR0 | NES-CI-0 CHR | 32 KB | EAD78010 | 3 |
| N/A | ROMs Combined | 64 KB | 681798A8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 3235 | Mask ROM 32 KB | DIP-28 | 2FC 10 | 9223 | |
| U2 CHR | Ricoh | RP23256E 2047 | Mask ROM 32 KB | DIP-28 | 2FC 12 | 9223 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9131 C | 9131 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9136 Hnn | 9136 |
