Release Info
| Catalog ID | NES-AI-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1989 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |

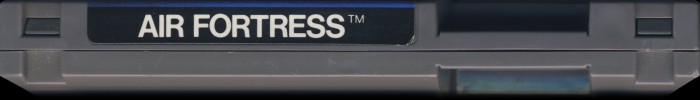

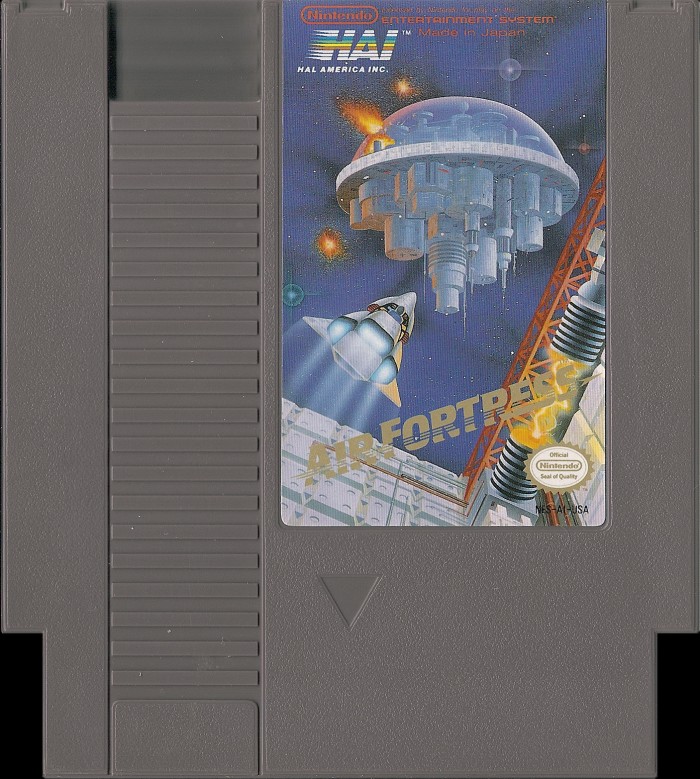

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AI-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

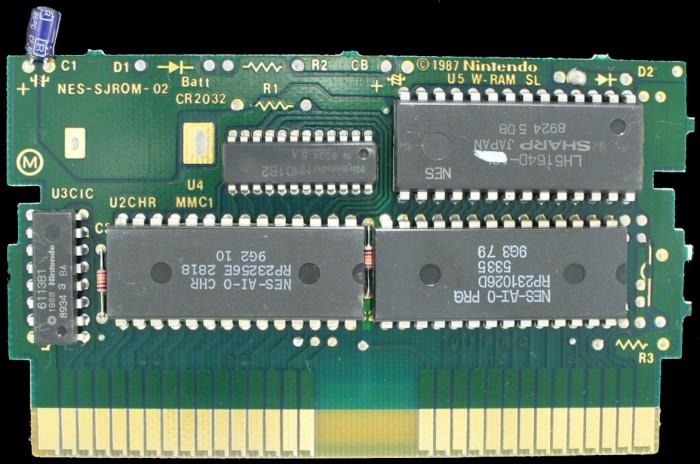

PCB Properties
| Name | NES-SJROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8934 - 8948 (2) |
| Est First Run | August 1989 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-AI-0 PRG | 128 KB | FBAAB554 | 2 |
| CHR0 | NES-AI-0 CHR | 32 KB | 3EEBD9C5 | 4 |
| N/A | ROMs Combined | 160 KB | 35C41CD4 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5335 | Mask ROM 128 KB | DIP-28 | 9G3 79 | 8929 | |
| U2 CHR | Ricoh | RP23256E 2818 | Mask ROM 32 KB | DIP-28 | 9G2 10 | 8928 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8934 3 BA | 8934 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8934 5 A | 8934 | |
| U5 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 8924 5 DB | 8924 |
