Release Info
| Catalog ID | NES-W6-UKV |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | 1991 |
| Publisher | Nintendo |
| Developer | KID |
| Players | 1 |
| Peripherals | NES Controller |

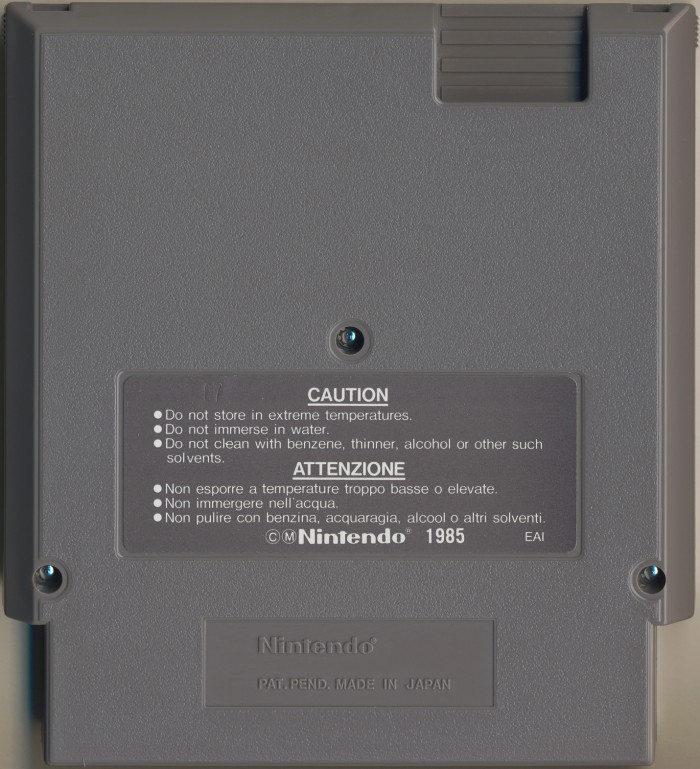

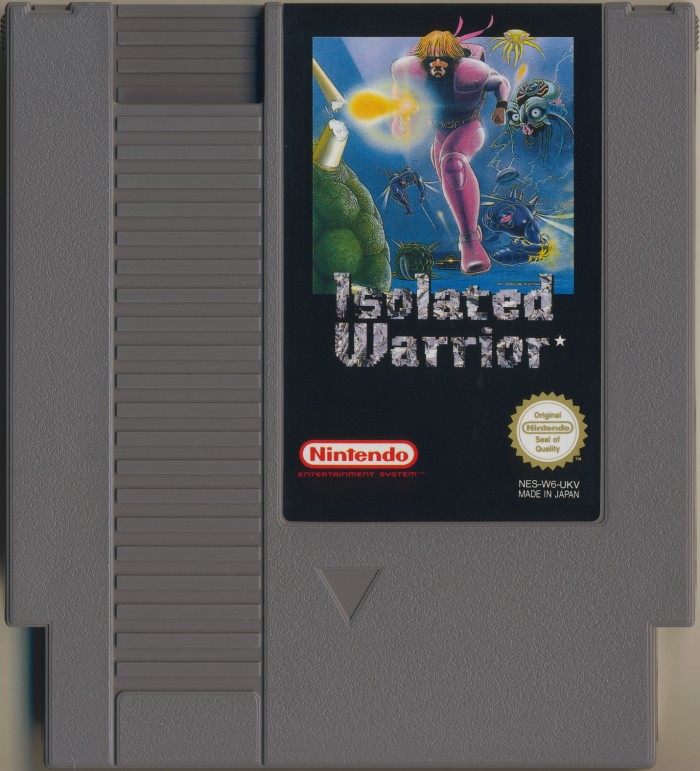

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-W6-UKV |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

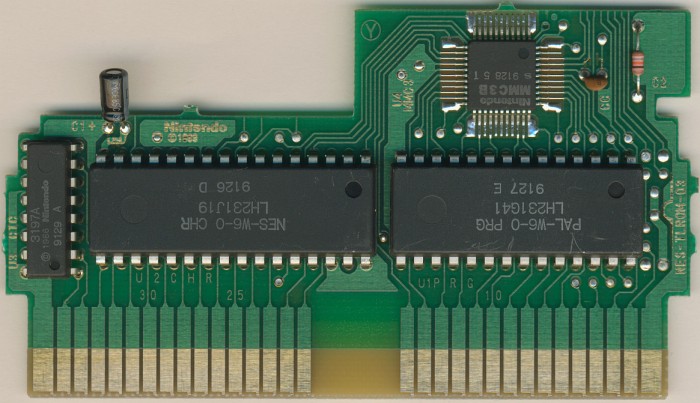

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9129 |
| Est First Run | July 1991 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-W6-0 PRG | 128 KB | C3AEC9FA | 2 |
| CHR0 | NES-W6-0 CHR | 128 KB | 230349C9 | 3 |
| N/A | ROMs Combined | 256 KB | 4BB9B840 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 41 | Mask ROM 128 KB | DIP-28 | 9127 E | 9127 | |
| U2 CHR | Sharp | LH231J 19 | Mask ROM 128 KB | DIP-32 | 9126 D | 9126 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9129 A | 9129 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9128 5 T | 9128 |
