Release Info
| Catalog ID | NES-39-AUS |
|---|---|
| Region | Australia (PAL-A) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Palcom |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

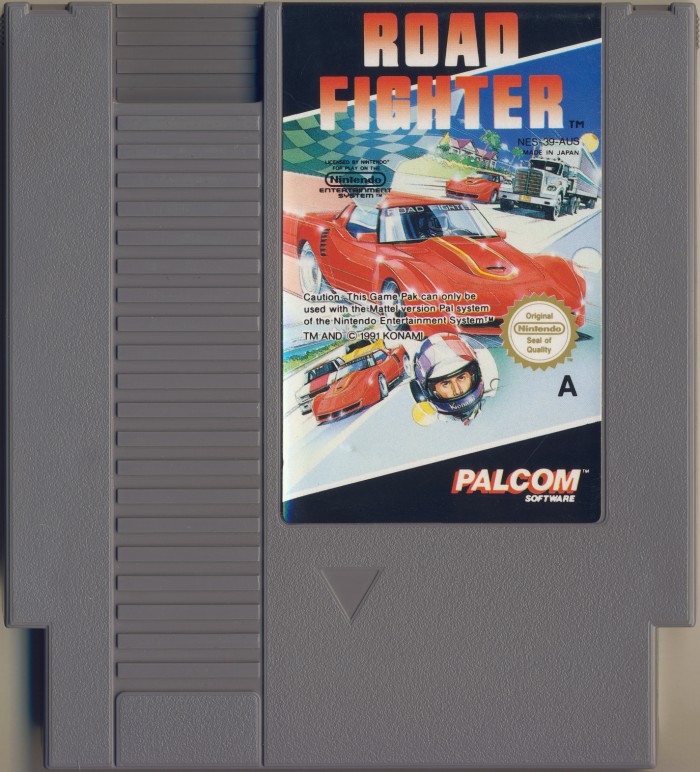

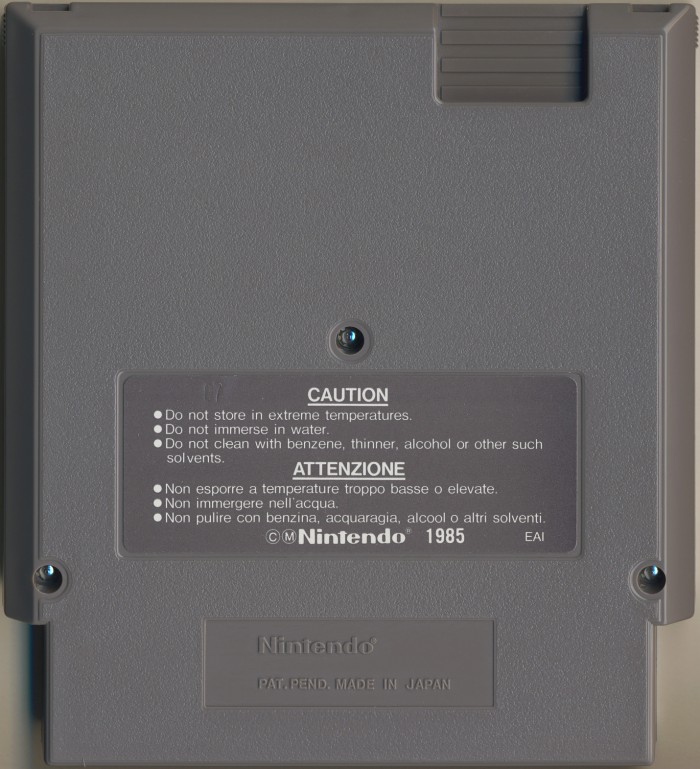

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-39-AUS |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

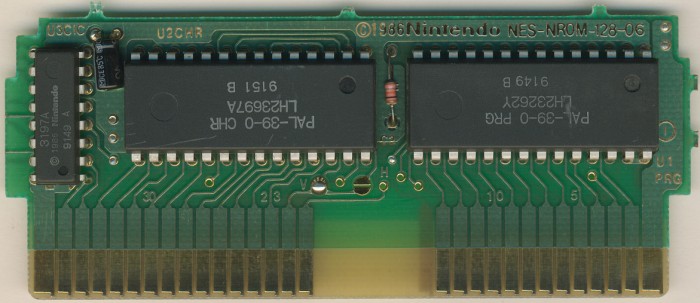

PCB Properties
| Name | NES-NROM-128-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9151 |
| Est First Run | December 1991 |
| PCB Class | NES-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-39-0 PRG | 16 KB | F51C7D02 | 4 |
| CHR0 | PAL-39-0 CHR | 8 KB | A148C520 | 4 |
| N/A | ROMs Combined | 24 KB | 719571B3 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2326 2Y | Mask ROM 16 KB | DIP-28 | 9149 B | 9149 | |
| U2 CHR | Sharp | LH2369 7A | Mask ROM 8 KB | DIP-28 | 9151 B | 9151 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9149 A | 9149 |
