Release Info
| Catalog ID | NES-GZ-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Toho |
| Developer | Compile |
| Players | 1 |
| Peripherals | NES Controller |

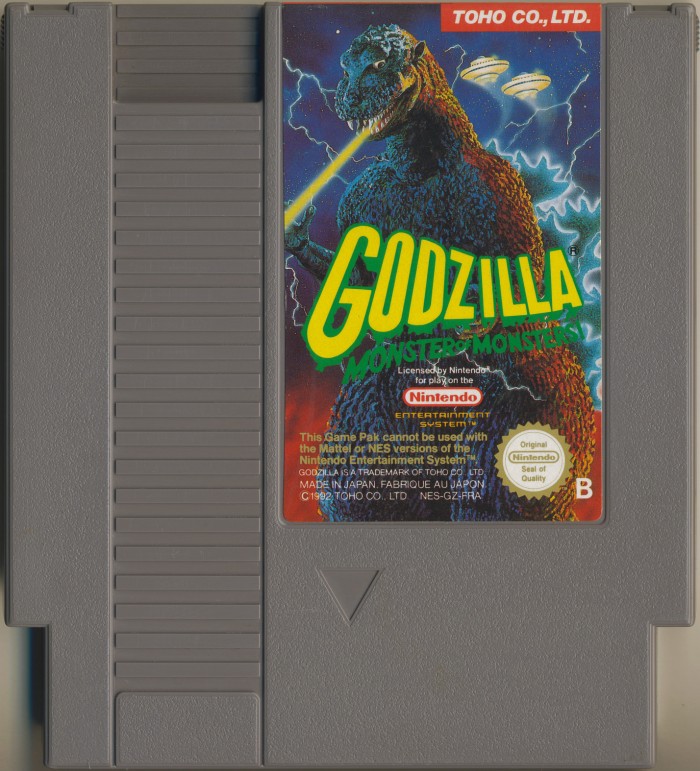

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GZ-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 09 |

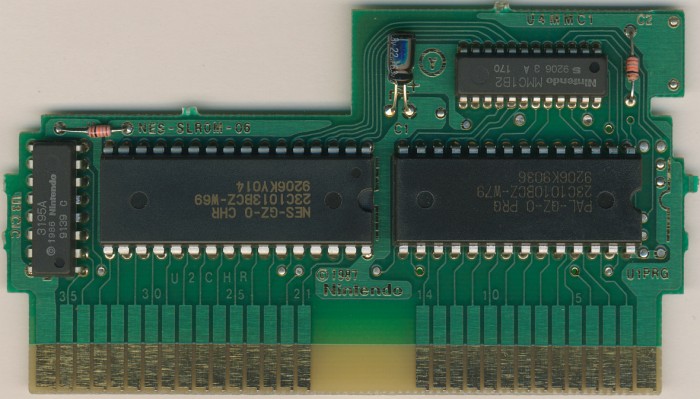

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9206 - 9207 (2) |
| Est First Run | February 1992 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-GZ-0 PRG | 128 KB | D76A57BF | 3 |
| CHR0 | NES-GZ-0 CHR | 128 KB | E5C2BC99 | 4 |
| N/A | ROMs Combined | 256 KB | 46480432 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W79 | Mask ROM 128 KB | DIP-28 | 9206 K9036 | 9206 | |
| U2 CHR | NEC | 23C1013BCZ W69 | Mask ROM 128 KB | DIP-32 | 9206 KY014 | 9206 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9139 C | 9139 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9206 3 A 170 | 9206 |
