Release Info
| Catalog ID | NES-6B-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1991 |
| Publisher | Parker Brothers |
| Developer | Sculptured Software |
| Players | 8 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-6B-FRA/FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |

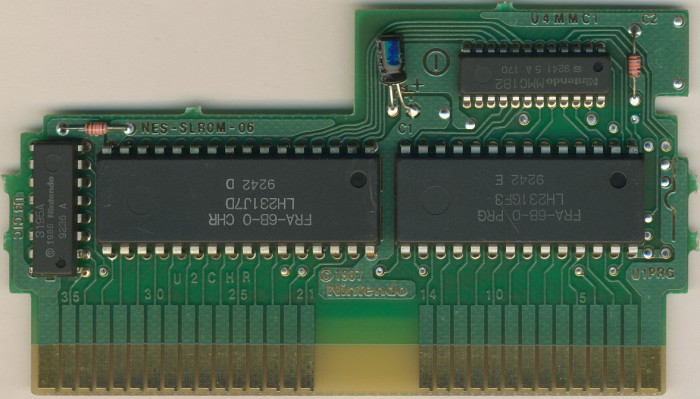

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9242 - 9242 (2) |
| Est First Run | October 1992 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRA-6B-0 PRG | 128 KB | F4A9D860 | 2 |
| CHR0 | FRA-6B-0 CHR | 128 KB | 14853B0F | 2 |
| N/A | ROMs Combined | 256 KB | 03B8DEFA | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G F3 | Mask ROM 128 KB | DIP-28 | 9242 E | 9242 | |
| U2 CHR | Sharp | LH231J 7D | Mask ROM 128 KB | DIP-32 | 9242 D | 9242 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9236 A | 9236 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9241 5 A 170 | 9241 |
