Release Info
| Catalog ID | NES-JM-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | October 11, 1991 |
| Publisher | Jaleco |
| Developer | LucasFilm Games |
| Players | 1 |
| Peripherals | NES Controller |

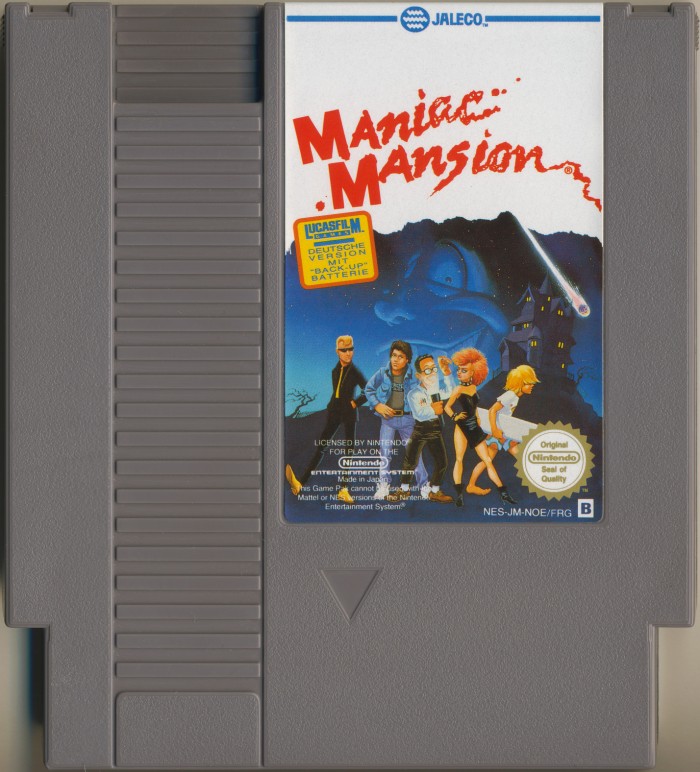

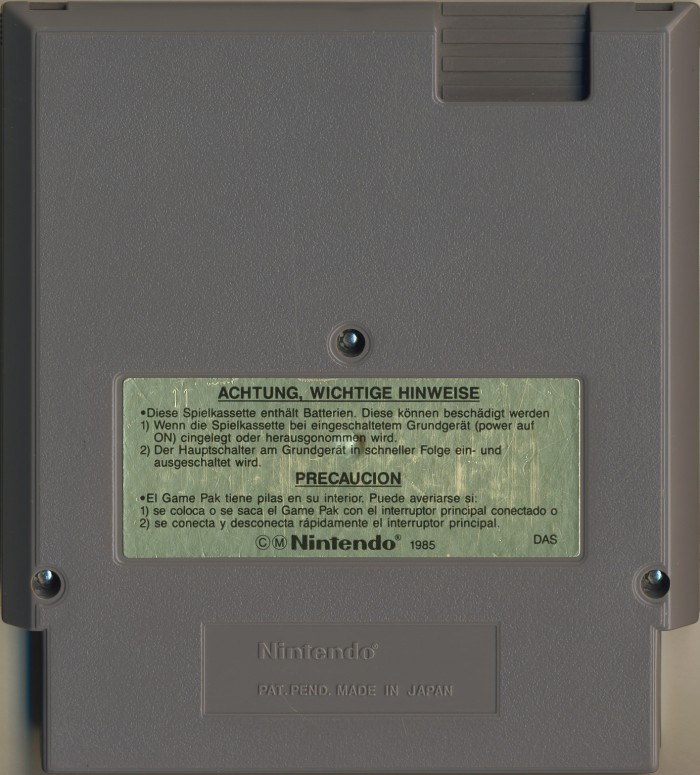

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-JM-NOE/FRG |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-SNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9141 - 9141 (2) |
| Est First Run | October 1991 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FRG-JM-0 PRG | 256 KB | 60EA98A0 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 9141 T02 | 9141 | |
| U2 CHR RAM | MOSEL | MS6264CLL-15PC | SRAM 8 KB | DIP-28 | 9136 KT03 | 9136 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9133 C | 9133 | |
| U4 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9103 B3018 | 9103 | |
| U5 W-RAM | Sony | CXK5864BPX-12LL | SRAM 8 KB | DIP-28 | 131 A12X | 9131 |
