Release Info
| Catalog ID | NES-KF-AUS |
|---|---|
| Region | Australia (PAL-A) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Acclaim |
| Developer | Audiogenic Software |
| Players | 1 |
| Peripherals | NES Controller |

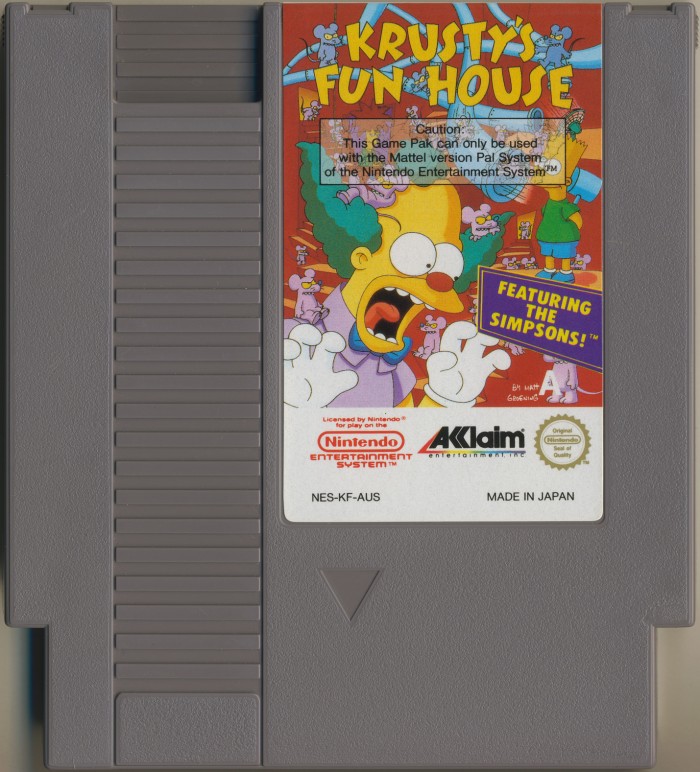

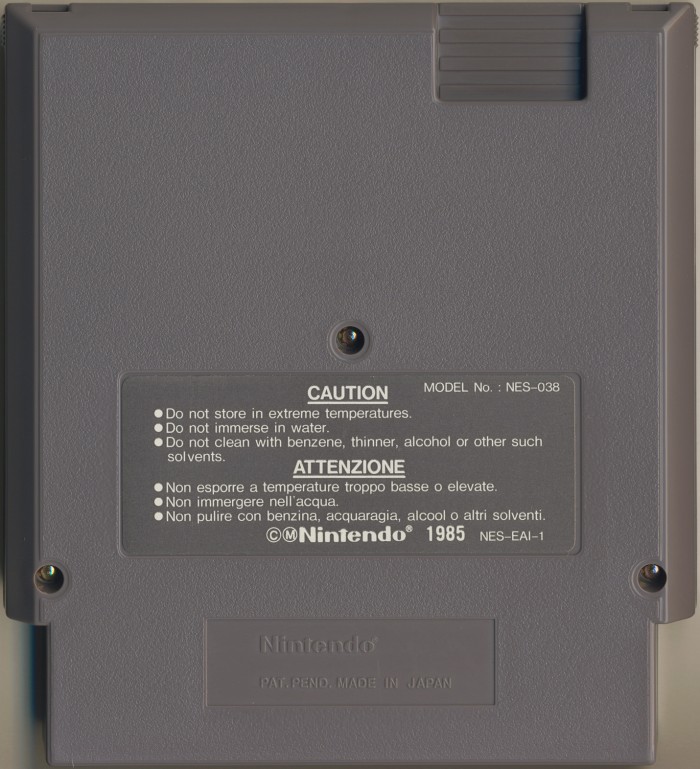

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-KF-AUS |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

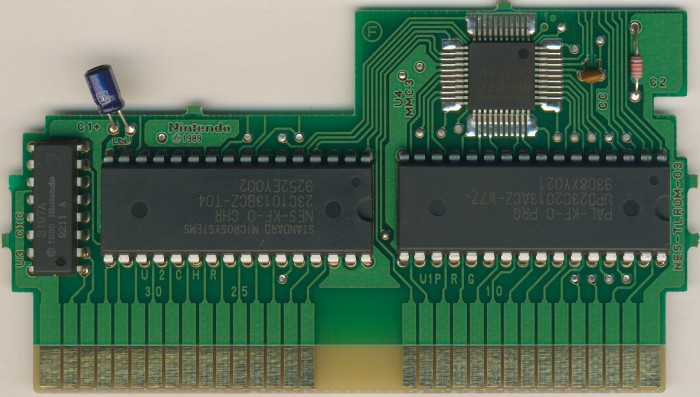

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9308 |
| Est First Run | February 1993 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-KF-0 PRG | 256 KB | 278DB9E3 | 1 |
| CHR0 | NES-KF-0 CHR | 128 KB | FCE8E0EA | 3 |
| N/A | ROMs Combined | 384 KB | 585BA83D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W77 | Mask ROM 256 KB | DIP-32 | 9308 XY021 | 9308 | |
| U2 CHR | NEC | 23C1013BCZ T04 | Mask ROM 128 KB | DIP-32 | 9252 EY002 | 9252 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9211 A | 9211 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9305 5 A | 9305 |
