Release Info
| Catalog ID | NES-IO-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Nintendo |
| Developer | Rare |
| Players | 4 |
| Peripherals | NES Controller |

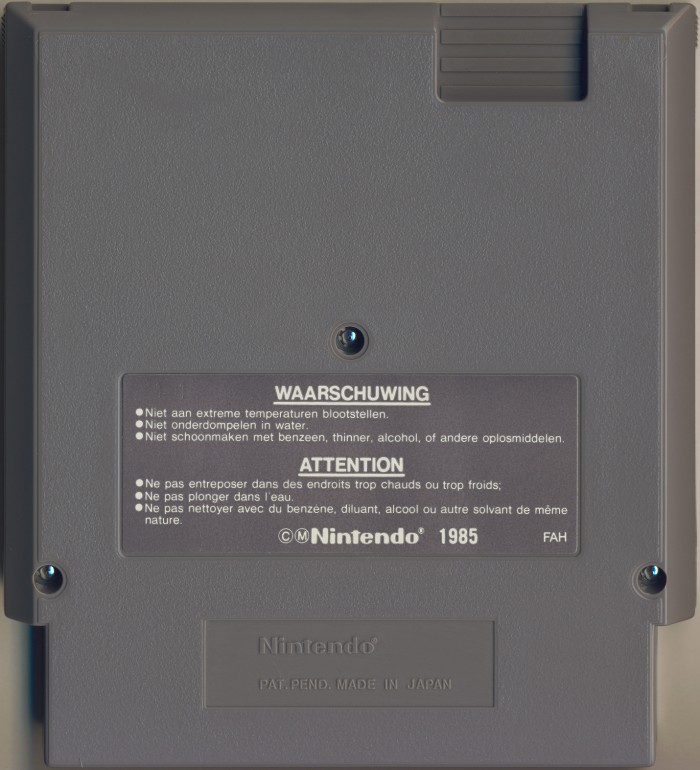

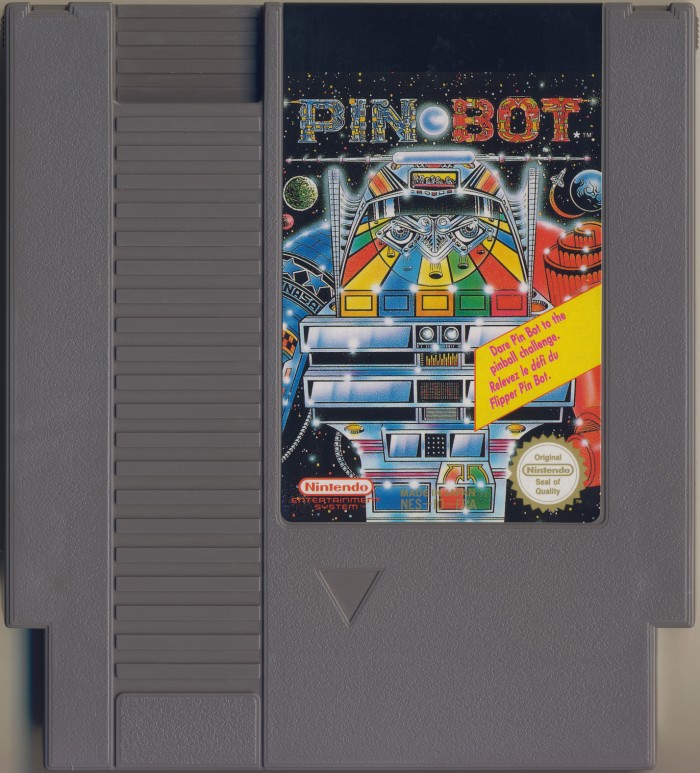

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-IO-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

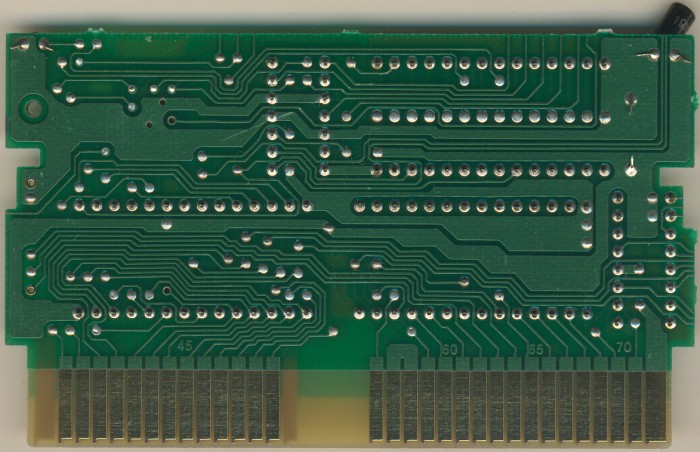

PCB Properties
| Name | NES-TQROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9043 |
| Est First Run | October 1990 |
| PCB Class | NES-TQROM |
| iNES Mapper | 119 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-IO-0 PRG | 128 KB | E1CEFA12 | 3 |
| CHR0 | NES-IO-0 CHR | 64 KB | 9089FC24 | 5 |
| N/A | ROMs Combined | 192 KB | 9247C38D | 3 |

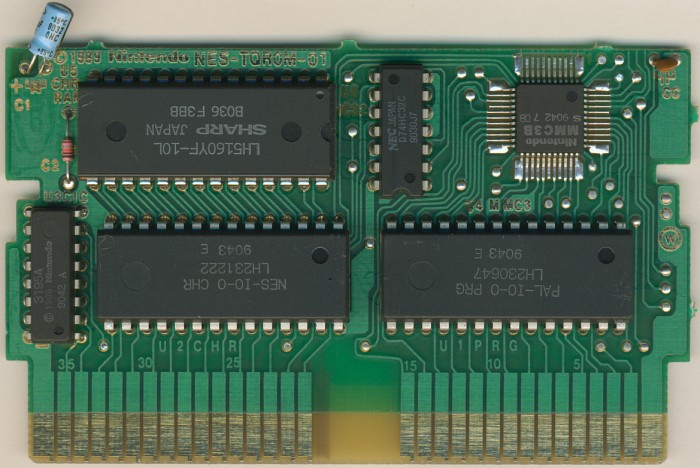

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 47 | Mask ROM 128 KB | DIP-28 | 9043 E | 9043 | |
| U2 CHR | Sharp | LH2312 22 | Mask ROM 64 KB | DIP-28 | 9043 E | 9043 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9042 A | 9042 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9042 7 DB | 9042 | |
| U5 CHR RAM | Sharp | LH5160YF-10L | SRAM 8 KB | DIP-28 | 036 B | 9036 | |
| U6 HC32 | NEC | D74HC32C | 74-32 Series | DIP-14 | 9030 J7 | 9030 |
