Release Info
| Catalog ID | NES-6U-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | November 19, 1992 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

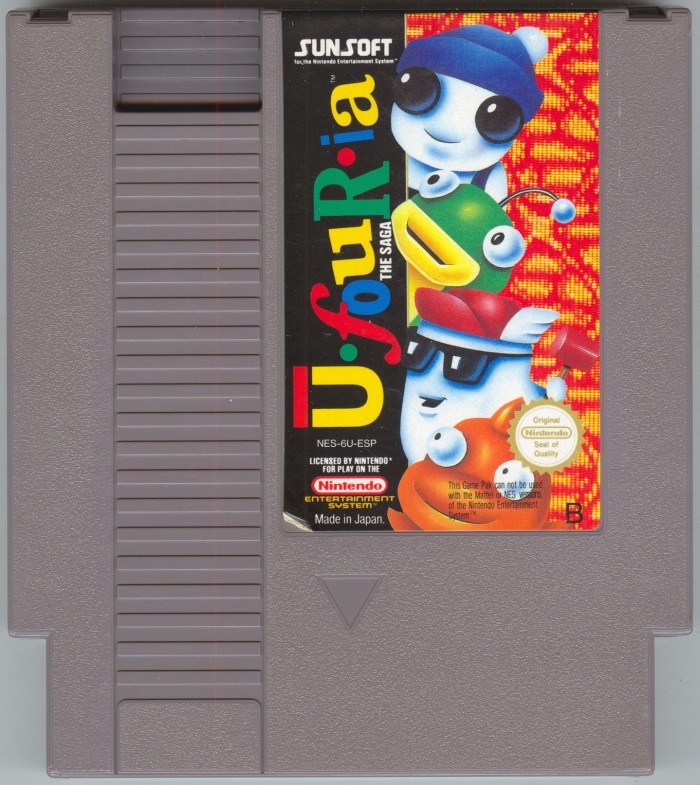

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-6U-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

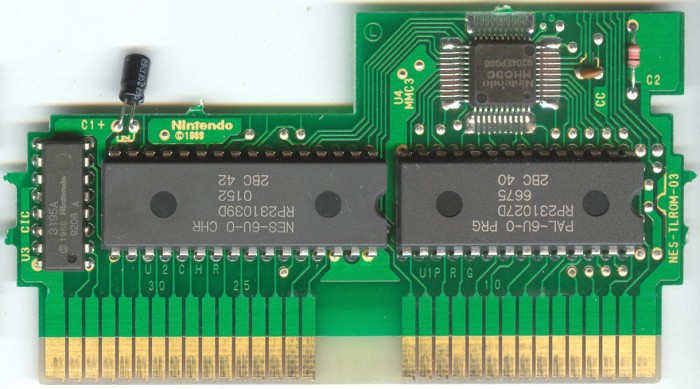

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9208 |
| Est First Run | February 1992 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-6U-0 PRG | 128 KB | 0E0C4221 | 3 |
| CHR0 | NES-6U-0 CHR | 128 KB | 8C7B49B1 | 3 |
| N/A | ROMs Combined | 256 KB | 4EC0FECC | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6675 | Mask ROM 128 KB | DIP-28 | 2BC 40 | 9206 | |
| U2 CHR | Ricoh | RP231039D 0152 | Mask ROM 128 KB | DIP-32 | 2BC 42 | 9206 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9208 A | 9208 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9204 EP066 | 9204 |
