Release Info
| Catalog ID | NES-CV-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | December 19, 1988 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |

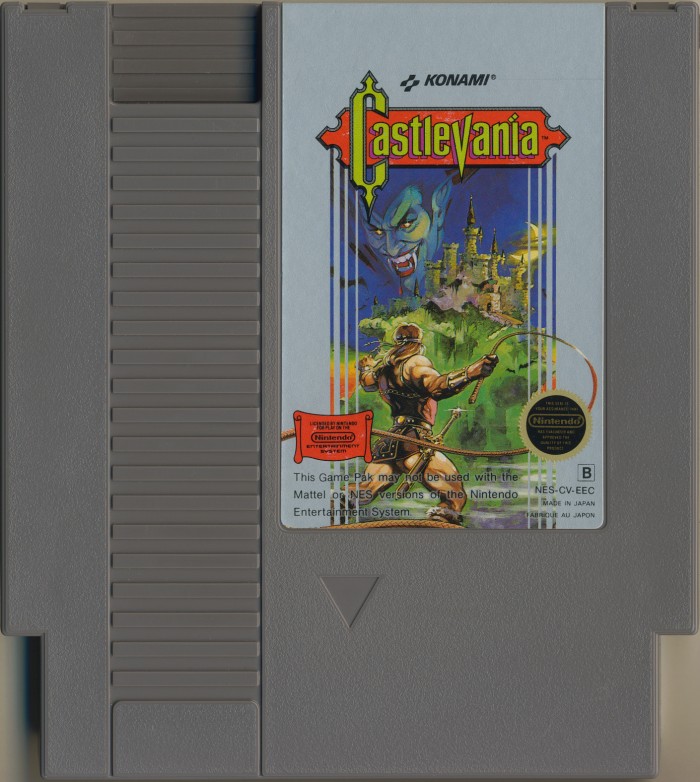

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CV-EEC |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8846 - 9029 (7) |
| Est First Run | November 1988 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-CV-0 PRG | 128 KB | A93527E2 | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2309 LA | Mask ROM 128 KB | DIP-28 | 8917 E | 8917 | |
| CHR RAM | Sony | CXK5864BP-12L | SRAM 8 KB | DIP-28 | 93 09 | 8909 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8912 A | 8912 | |
| LS161N | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 839 J | 8839 | |
| LS32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 910 J | 8910 |
