Release Info
| Catalog ID | NES-DJ-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed » Multi-cart |
| Release Date | August 10, 1989 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

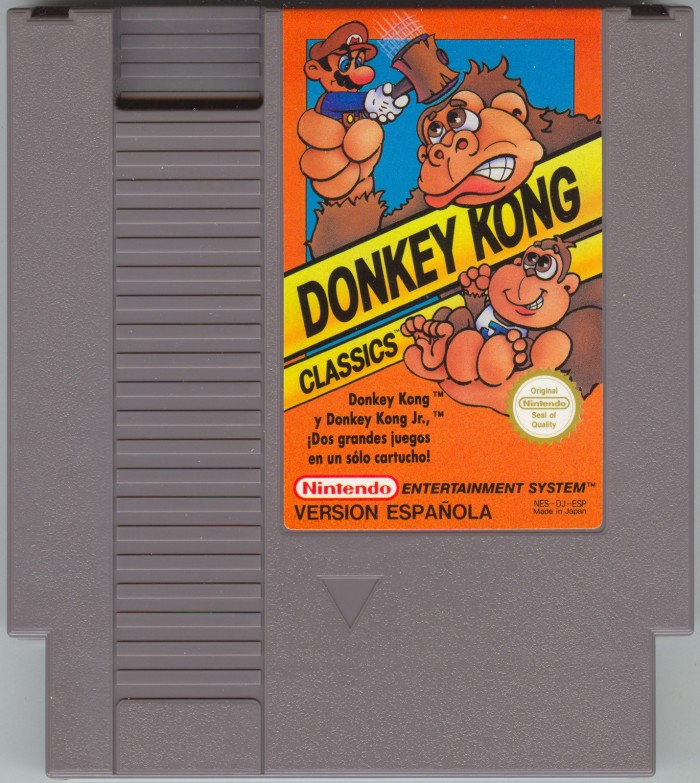

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DJ-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

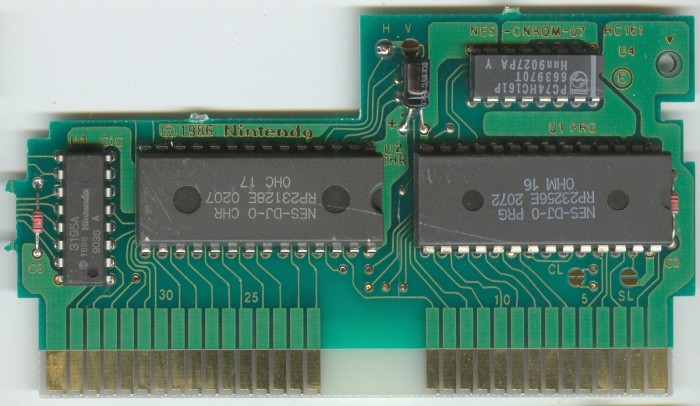

PCB Properties
| Name | NES-CNROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9036 - 9126 (2) |
| Est First Run | September 1990 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DJ-0 PRG | 32 KB | D711EA15 | 8 |
| CHR0 | NES-DJ-0 CHR | 16 KB | E0474EB5 | 8 |
| N/A | ROMs Combined | 48 KB | AB2006B4 | 8 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2072 | Mask ROM 32 KB | DIP-28 | 0HM 16 | 9033 | |
| U2 CHR | Ricoh | RP23128E 0207 | Mask ROM 16 KB | DIP-28 | 0HC 17 | 9032 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9036 A | 9036 | |
| U4 HC161 | Phillips | PC74HC161P | 74-161 Series | DIP-16 | 9027 Hnn | 9027 | 663970T |
