Release Info
| Catalog ID | NES-QP-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

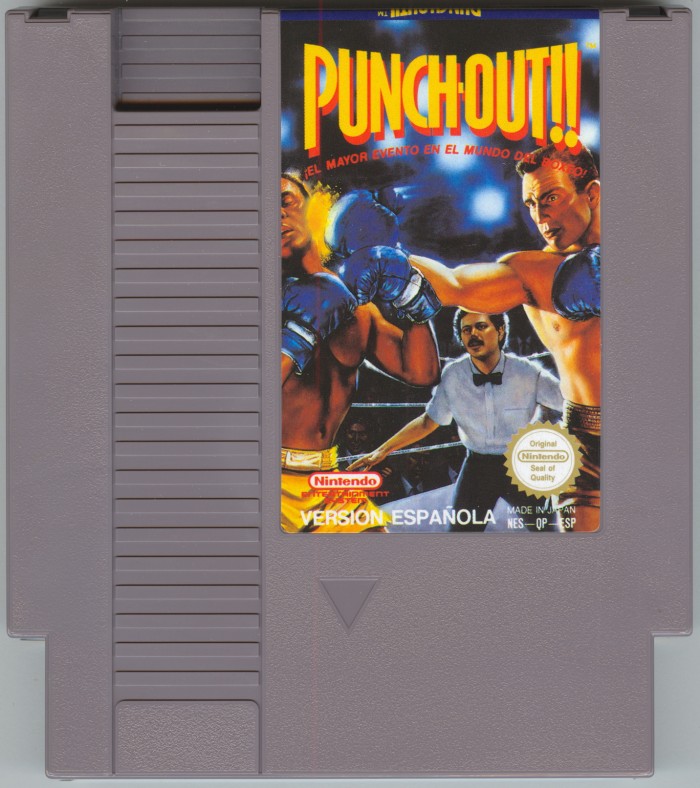

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-QP-ESP |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

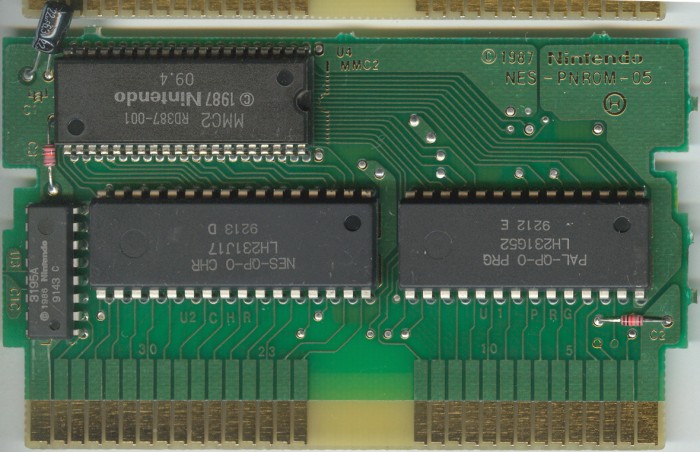

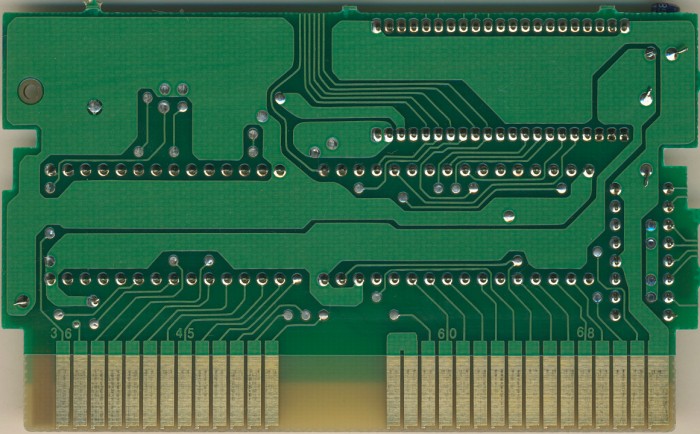

PCB Properties
| Name | NES-PNROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9213 |
| Est First Run | March 1992 |
| PCB Class | NES-PNROM |
| iNES Mapper | 9 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-QP-0 PRG | 128 KB | C9EB73F9 | 3 |
| CHR0 | NES-QP-0 CHR | 128 KB | 45D0C815 | 8 |
| N/A | ROMs Combined | 256 KB | D229FD5C | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 52 | Mask ROM 128 KB | DIP-28 | 9212 E | 9212 | |
| U2 CHR | Sharp | LH231J 17 | Mask ROM 128 KB | DIP-32 | 9213 D | 9213 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9143 C | 9143 | |
| U4 MMC2 | Panasonic | MMC2 | Nintendo MMC2 | DIP-42 | 09?4 | 9037 |
