Release Info
| Catalog ID | NES-AI-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | 1989 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 1 |
| Peripherals | NES Controller |

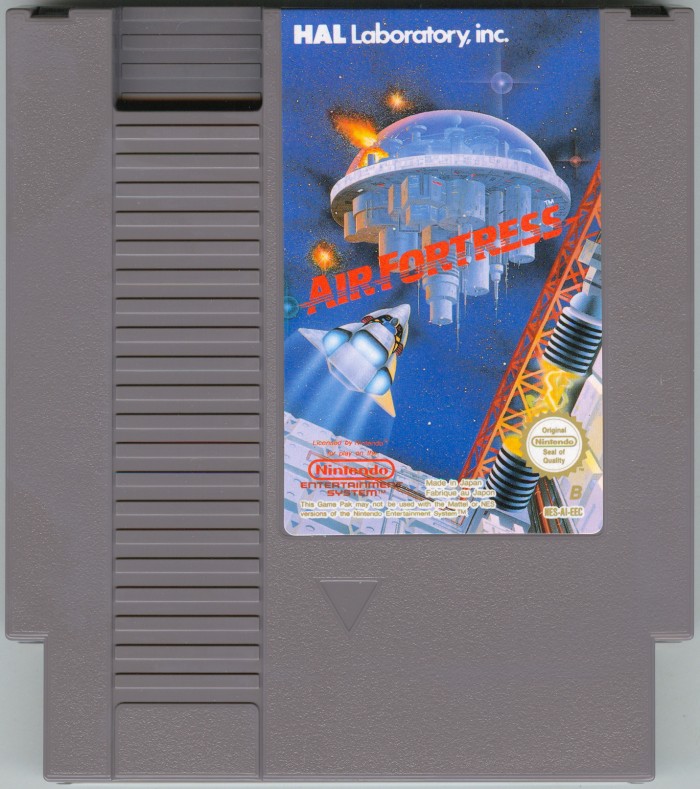

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-AI-EEC |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | No |
| 2-digit Code | 19 |

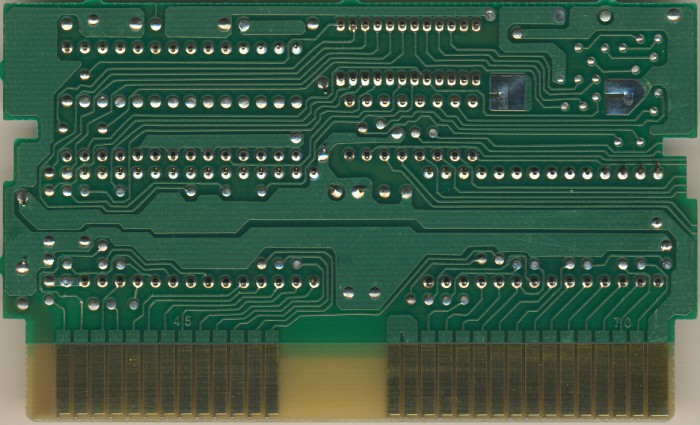

PCB Properties
| Name | NES-SJROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9046 |
| Est First Run | November 1990 |
| PCB Class | NES-SJROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-AI-0 PRG | 128 KB | 991CBDF2 | 2 |
| CHR0 | PAL-AI-0 CHR | 32 KB | 3EEBD9C5 | 4 |
| N/A | ROMs Combined | 160 KB | A1F90826 | 2 |

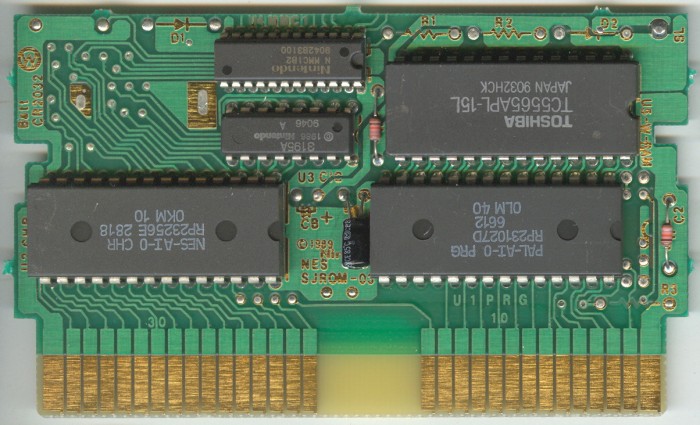

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6612 | Mask ROM 128 KB | DIP-28 | 0LM 40 | 9046 | |
| U2 CHR | Ricoh | RP23256E 2818 | Mask ROM 32 KB | DIP-28 | 0KM 10 | 9042 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9046 A | 9046 | |
| U4 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9042 B3100 | 9042 | |
| U5 W-RAM | Toshiba | TC5565APL-15L | SRAM 8 KB | DIP-28 | 9032 HCK | 9032 |
