Release Info
| Catalog ID | CDS-82 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 10, 1992 |
| Publisher | Coconuts |
| Developer | Marionette |
| Players | 1 |
| Peripherals | Famicom Controller,Pachinko Controller |

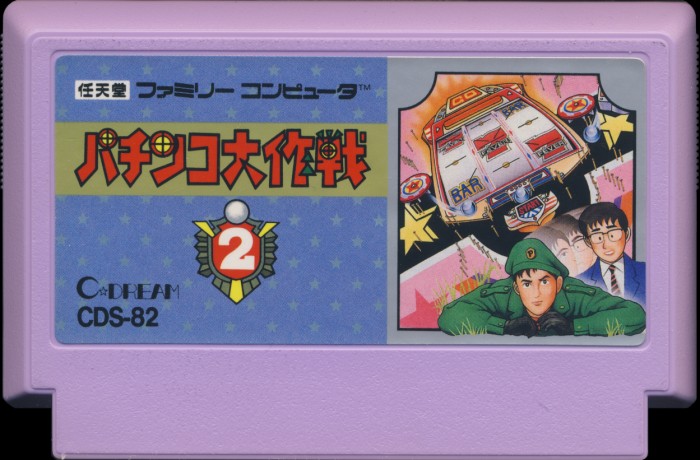

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Plum |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CDS-82 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

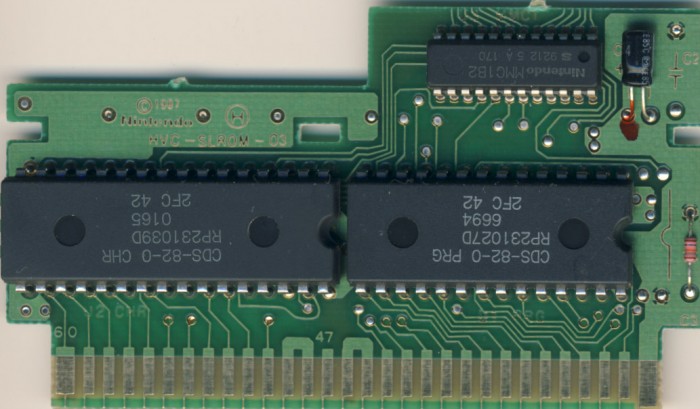

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9223 |
| Est First Run | June 1992 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CDS-82-0 PRG | 128 KB | 1644C162 | 1 |
| CHR0 | CDS-82-0 CHR | 128 KB | B1AACEE2 | 1 |
| N/A | ROMs Combined | 256 KB | 44F92026 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6694 | Mask ROM 128 KB | DIP-28 | 2FC 42 | 9223 | |
| U2 CHR | Ricoh | RP231039D 0165 | Mask ROM 128 KB | DIP-32 | 2FC 42 | 9223 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9212 5 A 170 | 9212 |
