Release Info
| Catalog ID | HVC-W3 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | May 27, 1994 |
| Publisher | Electronic Arts |
| Developer | Graphic Research |
| Players | 2 |
| Peripherals | Famicom Controller |

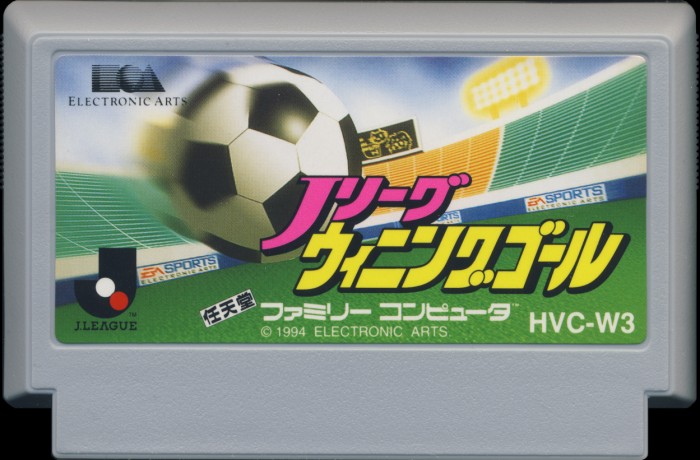

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Grey |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-W3 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 12 |

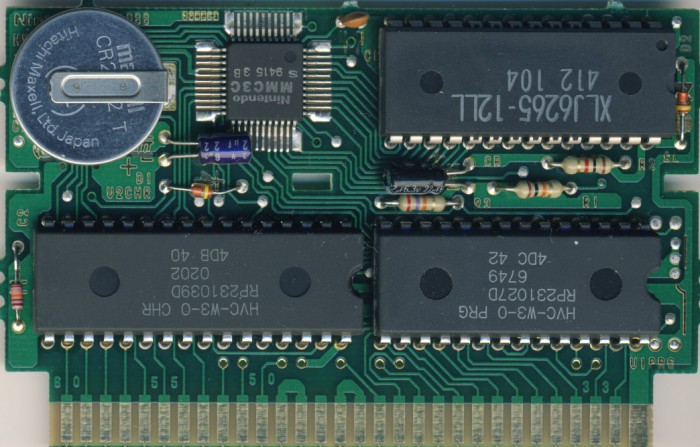

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9415 |
| Est First Run | April 1994 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-W3-0 PRG | 128 KB | 12BBA335 | 1 |
| CHR0 | HVC-W3-0 CHR | 128 KB | BD6CF7CA | 1 |
| N/A | ROMs Combined | 256 KB | 3D4B64F1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6749 | Mask ROM 128 KB | DIP-28 | 4DC 42 | 9414 | |
| U2 CHR | Ricoh | RP231039D 0202 | Mask ROM 128 KB | DIP-32 | 4DB 40 | 9414 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9415 3 B | 9415 | |
| U4 W-RAM | Rohm | XLJ6265-12LL | SRAM 8 KB | DIP-28 | 412 104 | 9412 |
