Release Info
| Catalog ID | ATH-ZX |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 27, 1990 |
| Publisher | Athena |
| Developer | Athena |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Midnight Blue |
| Form Factor | Small |
| Embossed Text | |

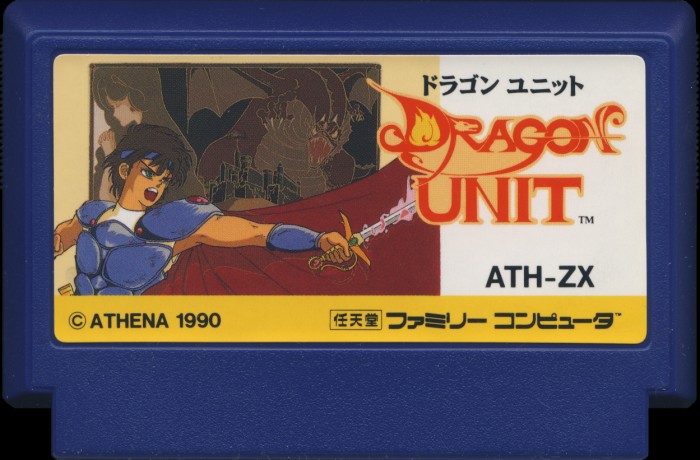

| Front Label ID | ATH-ZX |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9001 |
| Est First Run | January 1990 |
| PCB Class | HVC-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ATH-ZX-0 PRG | 128 KB | 804F898A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231026D 5395 | Mask ROM 128 KB | DIP-28 | 9M3 A1 | 8951 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8951 MX | 8951 | |
| U3 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 938 EN | 8938 | |
| U4 HC32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 | 001 J | 9001 |
