Release Info
| Catalog ID | KSC-N5 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 21, 1990 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 2 |
| Peripherals | Famicom Controller |

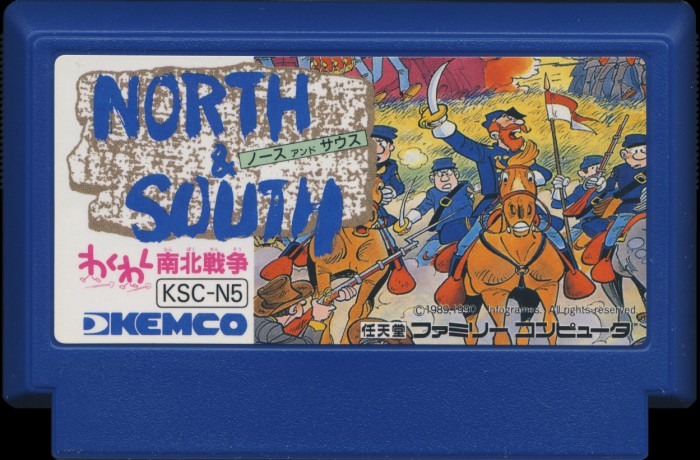

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-N5 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

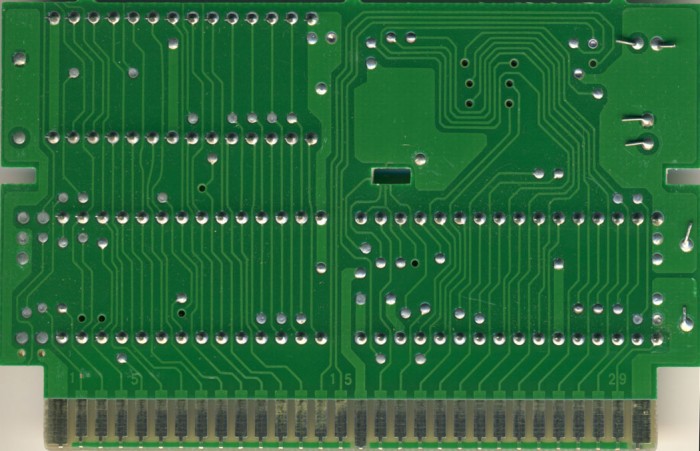

PCB Properties
| Name | HVC-TSROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9032 |
| Est First Run | August 1990 |
| PCB Class | HVC-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-N5-0 PRG | 128 KB | 68E8A520 | 1 |
| CHR0 | KSC-N5-0 CHR | 128 KB | D1EA387E | 1 |
| N/A | ROMs Combined | 256 KB | 0FC8E9B7 | 1 |

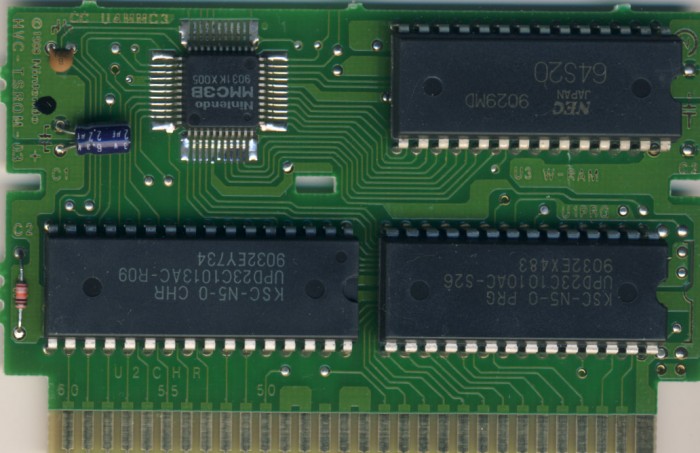

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S26 | Mask ROM 128 KB | DIP-28 | 9032 EX483 | 9032 | |
| U2 CHR | NEC | UPD23C1013AC R09 | Mask ROM 128 KB | DIP-32 | 9032 EY734 | 9032 | |
| U3 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9029 MD | 9029 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9031 KX005 | 9031 |
