Release Info
| Catalog ID | NES-J3-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1990 |
| Publisher | GameTek |
| Developer | Rare |
| Players | 3 |
| Peripherals | NES Controller |

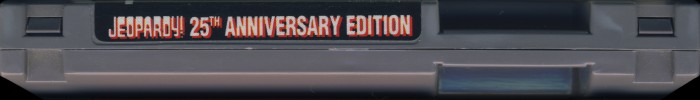

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

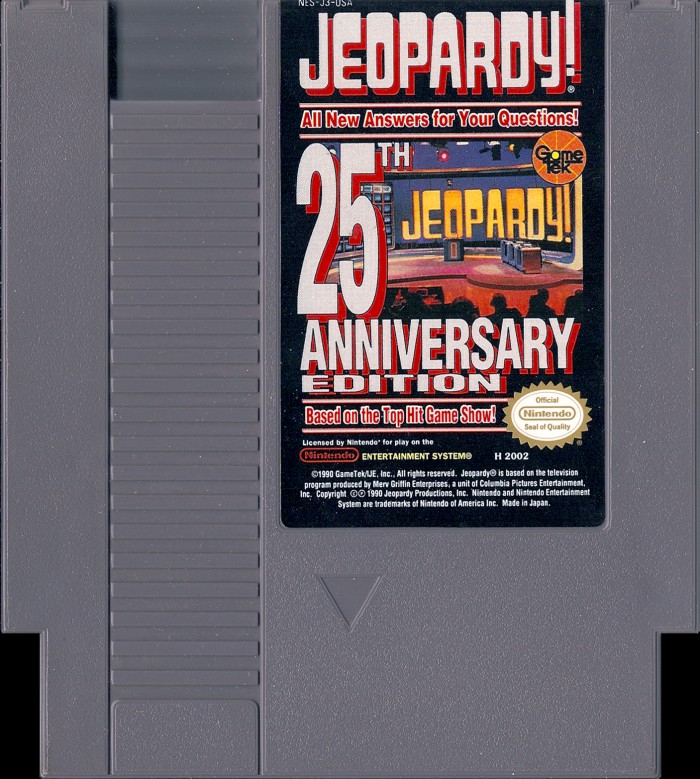

| Front Label ID | NES-J3-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 21 |
PCB Properties
| Name | NES-ANROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9026 - 9028 (2) |
| Est First Run | June 1990 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-J3-0 PRG | 128 KB | 0BDD8DD9 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1845 | Mask ROM 128 KB | DIP-28 | 0FJ XG | 9023 | |
| U2 CHR RAM | Fujitsu | 8464A-15L | SRAM 8 KB | DIP-28 | 9022 KT16 | 9022 | L |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9026 1 CA | 9026 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9015 | 9015 | |
| U5 HC02 | NEC | D74HC02C | 74-02 Series | DIP-14 | 9003 U7 | 9003 |
