Release Info
| Catalog ID |
CAP-4V |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
December 6, 1991 |
| Publisher |
Capcom |
| Developer |
Capcom |
| Players |
1 |
| Peripherals |
Famicom Controller |

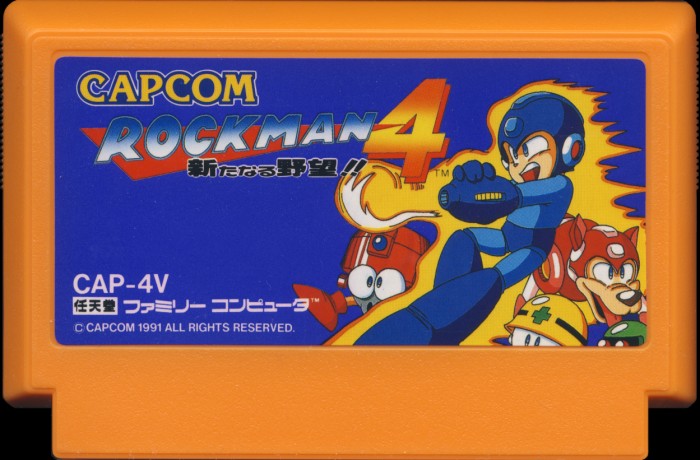

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Orange |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CAP-4V |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
34 |
PCB Properties
| Name |
HVC-TGROM-01 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9138 - 9144 (5) |
| Est First Run |
September 1991 |
| PCB Class |
HVC-TGROM |
| iNES Mapper |
4 |
| Mirroring |
Mapper Ctrl |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
MMC3B |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CAP-4V-0 PRG |
512 KB |
F161A5D8 |
5 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
NEC |
UPD23C4013C
W15
|
Mask ROM
512 KB
|
DIP-32 |
9142
EY045
|
9142 |
|
| U2 CHR-RAM |
Sharp |
LH5168FB-10L
|
SRAM
8 KB
|
DIP-28 |
9141
DC
|
9141 |
|
| U3 MMC3 |
Sharp |
MMC3B
|
Nintendo MMC3
|
TQFP-44 |
9144
3 AB
|
9144 |
|
Additional Images
PCB Images
