Release Info
| Catalog ID | NES-ZL-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | November 15, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

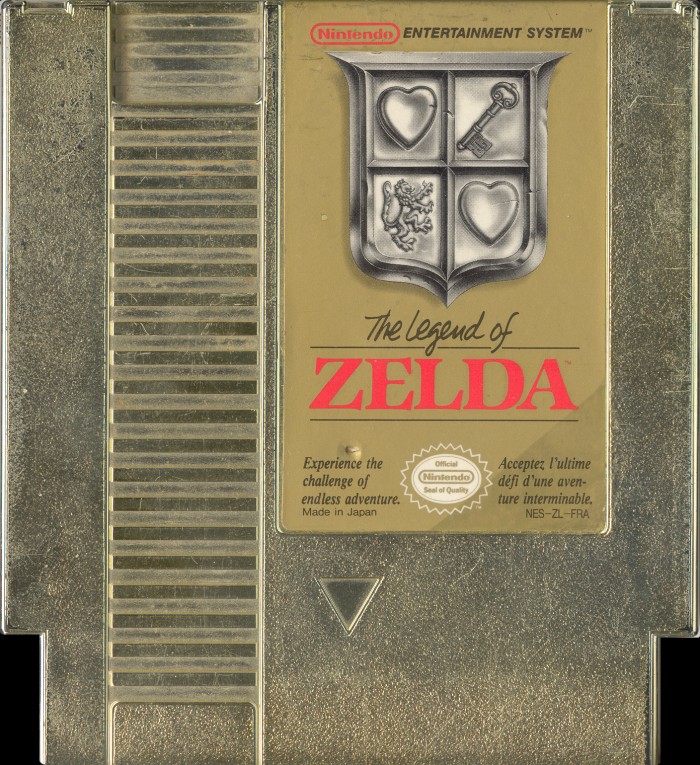

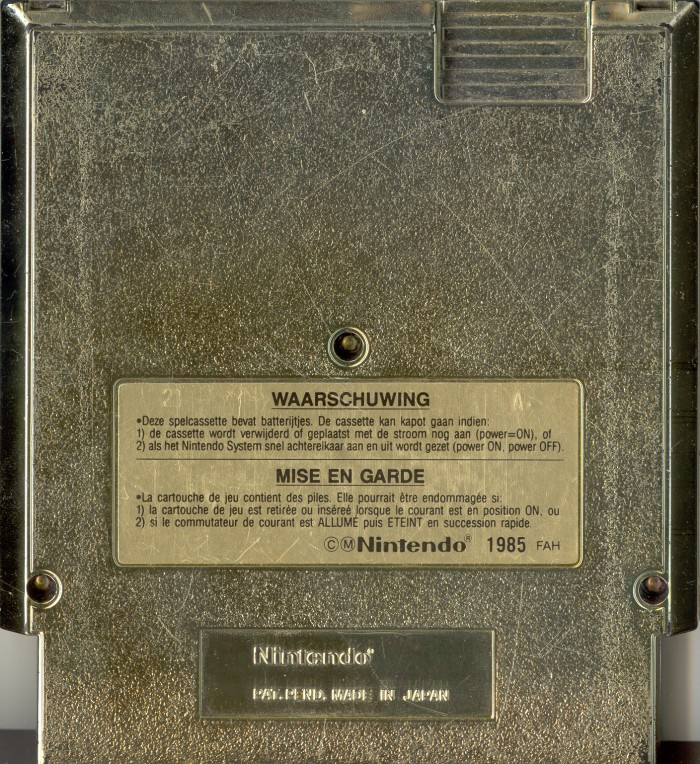

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Gold |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-ZL-FRA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-SNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8932 |
| Est First Run | August 1989 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-ZL-1 PRG | 128 KB | D44B412E | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2309 45 | Mask ROM 128 KB | DIP-28 | 8931 E | 8931 | |
| CHR | OKI | M5165AL-12 | SRAM 8 KB | DIP-28 | 94 3007 | 8914 | |
| Sharp | 3195A | Nintendo CIC | DIP-16 | 8923 A | 8923 | ||
| Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8932 1 A | 8932 | ||
| Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8926 3 Y | 8926 |
