Release Info
| Catalog ID | VJ-001 |
|---|---|
| Region | Spain (PAL) |
| Class | Unlicensed |
| Release Date | 1992 |
| Publisher | Gluk Video |
| Developer | TXC Corp |
| Players | 1 |
| Peripherals | NES Controller |

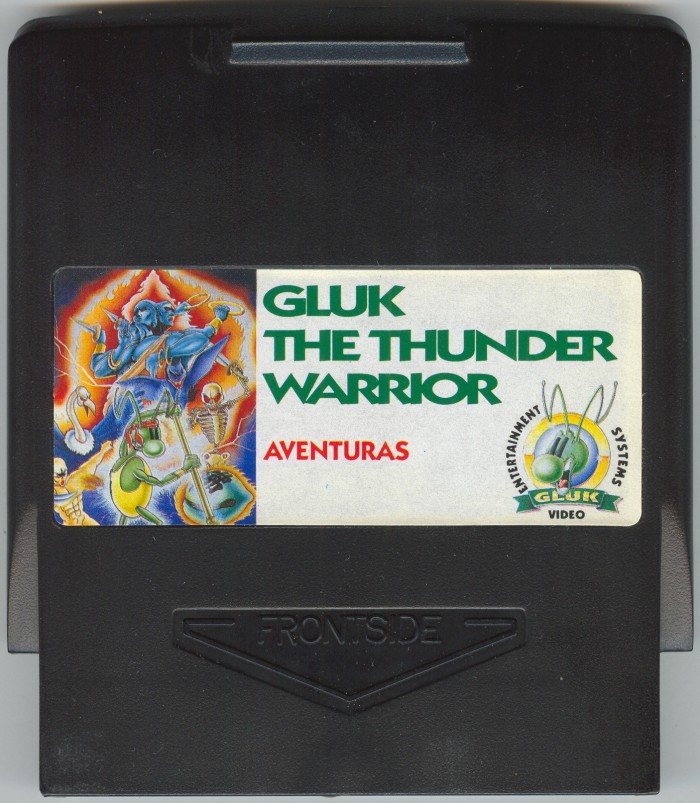

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

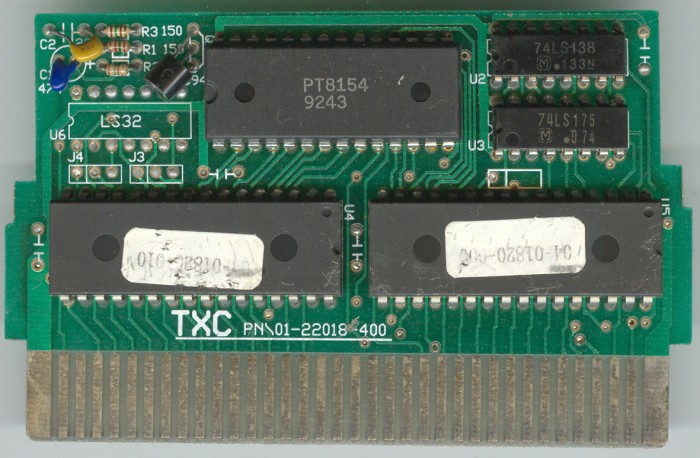

PCB Properties
| Name | PN\01-22018-400 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9243 |
| Est First Run | October 1992 |
| PCB Class | TXC-PT8154 |
| iNES Mapper | 189 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx175, PT8154 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 04-01820-000 | 128 KB | 3F60AC50 | 1 |
| CHR0 | 04-01820-010 | 128 KB | 9219BD34 | 1 |
| N/A | ROMs Combined | 256 KB | 1570A0C8 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | __Unknown | 27C1000 | Mask ROM 128 KB | DIP-32 | |||
| U2 LS138 | Matsushita | 74LS138 | 74-138 Series | DIP-16 | .133 N_ | 9111 | |
| U3 LS175 | Matsushita | 74LS175 | 74-175 Series | DIP-16 | .974 | 8928 | |
| U4 CHR | __Unknown | 27C1000 | Mask ROM 128 KB | DIP-32 | |||
| U5 MMC | __Unknown | PT8154 | PT8154 | DIP-28 | 9243 | 9243 |
