Release Info
| Catalog ID | CN-07 |
|---|---|
| Region | Spain (PAL) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Gluk Video |
| Developer | MegaSoft |
| Players | 1 |
| Peripherals | NES Controller |

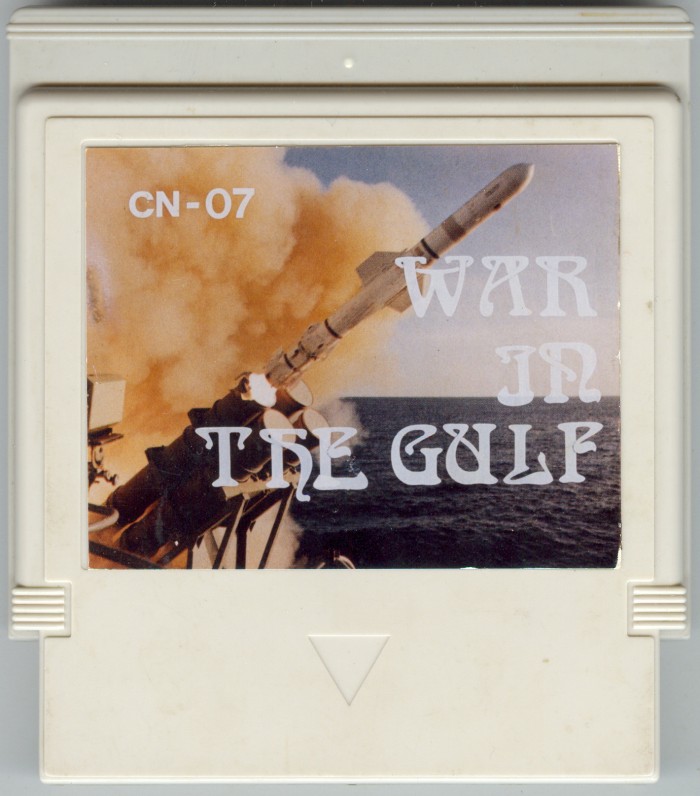

Cart Properties
| Cart Producer | |
|---|---|
| Color | Beige |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | CN-07 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

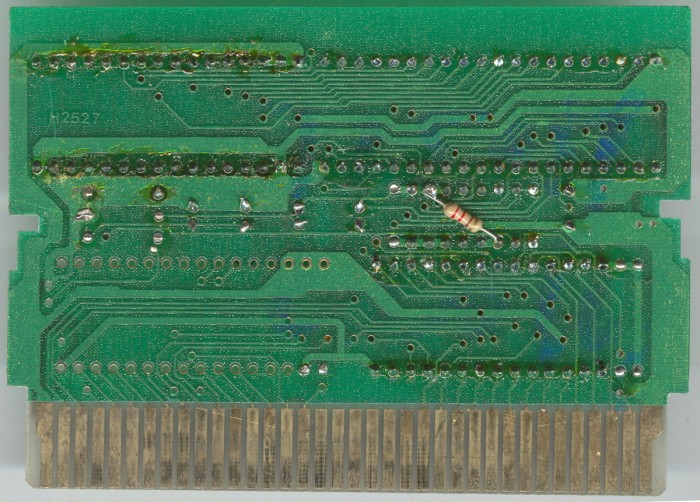

PCB Properties
| Name | H2527 |
|---|---|
| PCB Producer | NTDEC |
| Manufacturer | Not Specified |
| Mfg Range | 9210 |
| Est First Run | March 1992 |
| PCB Class | NTDEC-TC-112 |
| iNES Mapper | 193 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | KC5373B |
| Hardware | TC-112 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ND961-P | 128 KB | A586AD54 | 2 |
| CHR0 | Not Present | 128 KB | 3AC3BDDD | 2 |
| N/A | ROMs Combined | 256 KB | 638DBC52 | 2 |

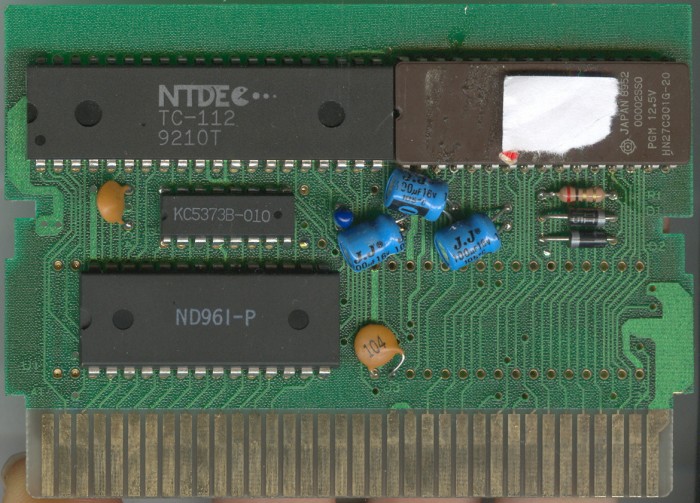

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | __Unknown | 231002 | Mask ROM 128 KB | DIP-28 | |||
| U2 | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8952 | 8952 | 00002SS0 |
| U4 | __Unknown | TC-112 | NTDEC TC-112 | DIP-40 | 9210 T | 9210 | |
| U5 | __Unknown | KC5373B-010 | NTDEC CIC | DIP-16 |
