Release Info
| Catalog ID | NES-JU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1988 |
| Publisher | HAL Laboratory |
| Developer | Williams Entertainment |
| Players | 2 |
| Peripherals | NES Controller |

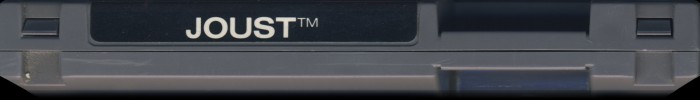

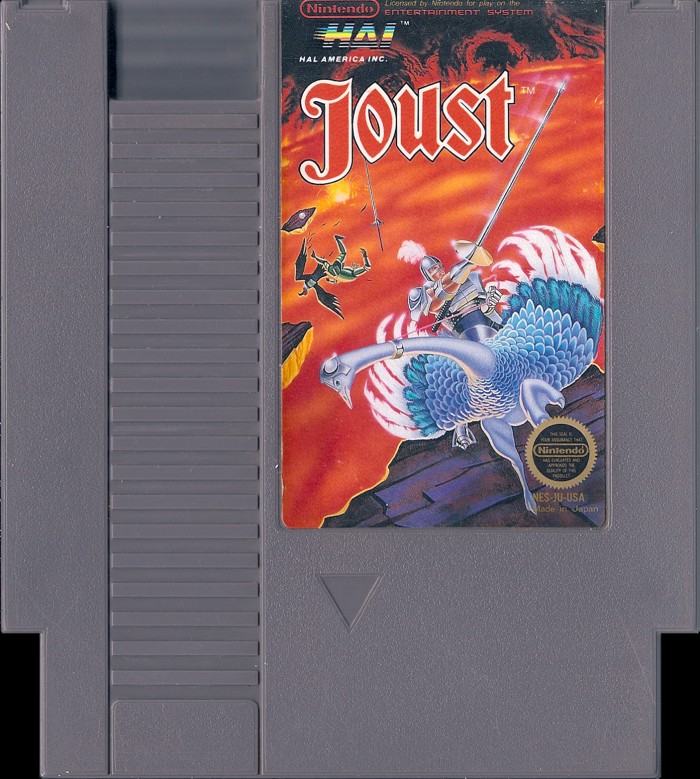

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-JU-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 05 |

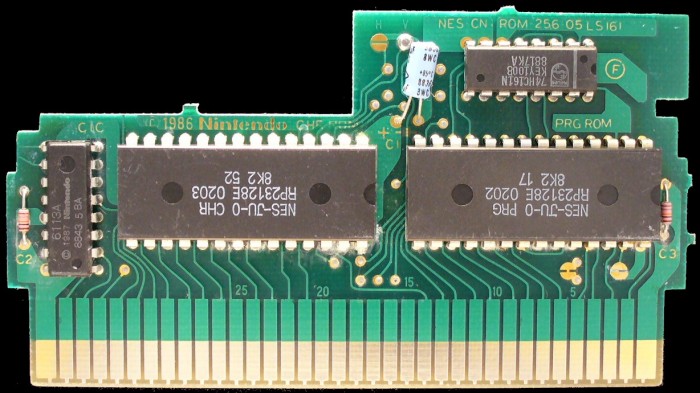

PCB Properties
| Name | NES-CN-ROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8843 |
| Est First Run | October 1988 |
| PCB Class | NES-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-JU-0 PRG | 16 KB | 435E9971 | 2 |
| CHR0 | NES-JU-0 CHR | 16 KB | C1E68DBF | 2 |
| N/A | ROMs Combined | 32 KB | BE387AF0 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Ricoh | RP23128E 0202 | Mask ROM 16 KB | DIP-28 | 8K2 17 | 8841 | |
| CHR ROM | Ricoh | RP23128E 0203 | Mask ROM 16 KB | DIP-28 | 8K2 52 | 8841 | |
| CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8843 5 BA | 8843 | |
| LS161 | Phillips | 74HC161N | 74-161 Series | DIP-16 | 8817 KA | 8817 | KEY1008 |
