Release Info
| Catalog ID | TGN-007-RT |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1989 |
| Publisher | Tengen |
| Developer | Namco |
| Players | 1 |
| Peripherals | NES Controller |

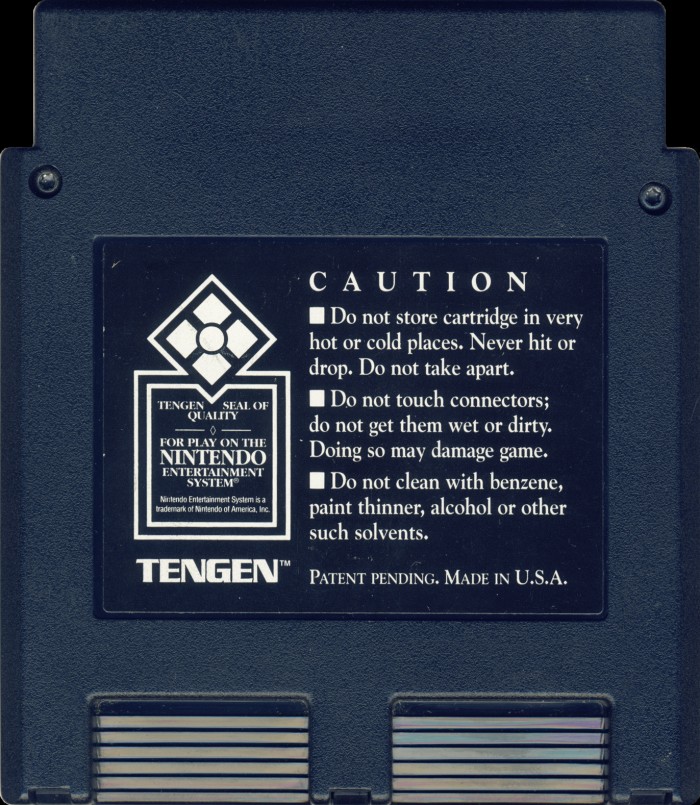

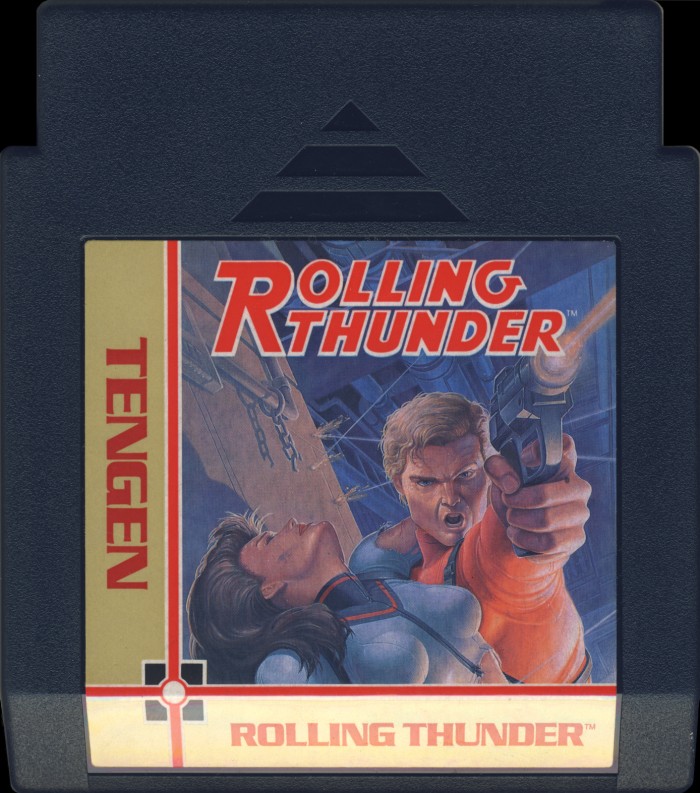

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

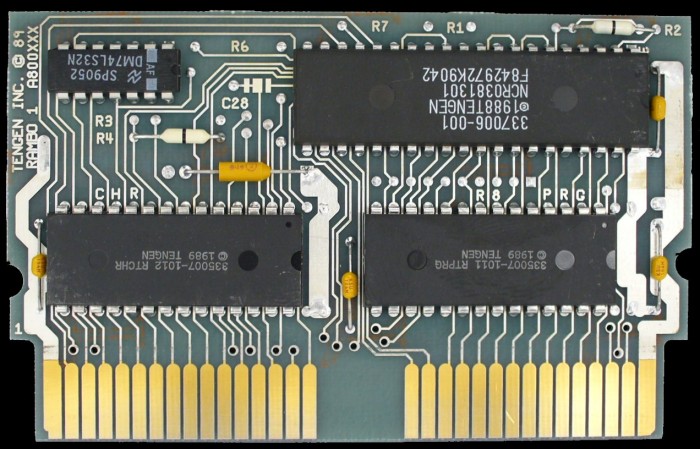

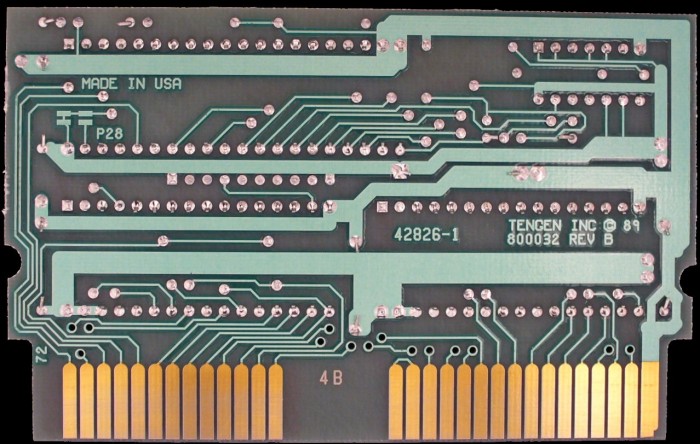

PCB Properties
| Name | 800032 REV B |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 8939 - 9052 (2) |
| Est First Run | September 1989 |
| PCB Class | TENGEN-800032 |
| iNES Mapper | 64 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337006 |
| Hardware | 337006, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335007-1011 RTPRG | 128 KB | 9808ABB8 | 2 |
| CHR0 | 335007-1012 RTCHR | 128 KB | C7634F44 | 2 |
| N/A | ROMs Combined | 256 KB | F92BE3EC | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | |||
| CHR | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | |||
| RAMBO 1 | NCR | 337006-001 | Tengen RAMBO-1 | DIP-40 | 9042 F842972K | 9042 | NCR0381301 |
| National Semiconductor | DM74LS32N | 74-32 Series | DIP-14 | 9052 SP | 9052 | AF |
