Release Info
| Catalog ID | NES-8W-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | January 21, 1993 |
| Publisher | Acclaim |
| Developer | Zippo Games |
| Players | 1 |
| Peripherals | NES Controller |

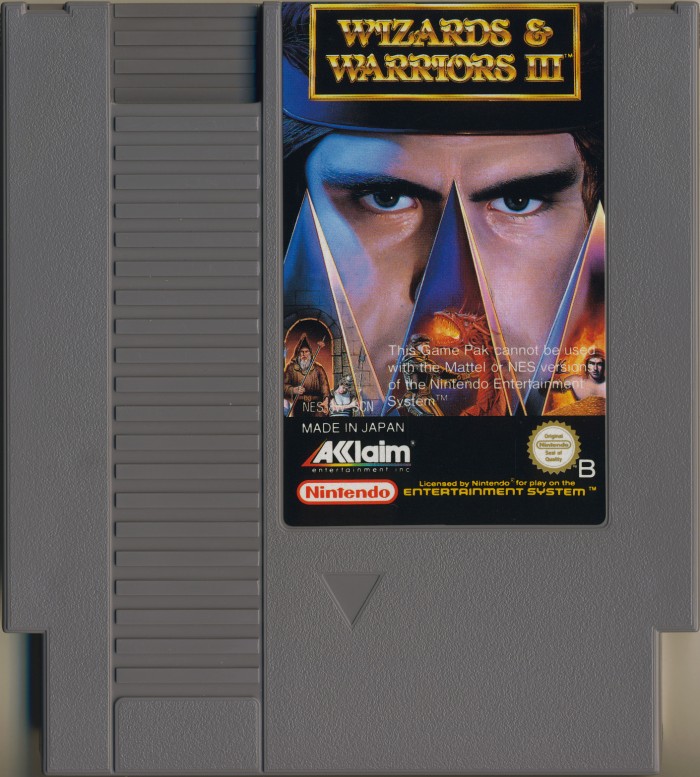

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-8W-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-AOROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9234 - 9236 (3) |
| Est First Run | August 1992 |
| PCB Class | NES-AOROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-8W-0 PRG | 256 KB | 806DE21E | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W55 | Mask ROM 256 KB | DIP-32 | 9235 XY700 | 9235 | |
| U2 CHR RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9230 EJ | 9230 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9234 C | 9234 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | 9205 | 9205 |
