Release Info
| Catalog ID | NES-GG-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | March 23, 1989 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 2 |
| Peripherals | NES Controller |

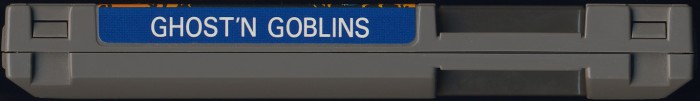

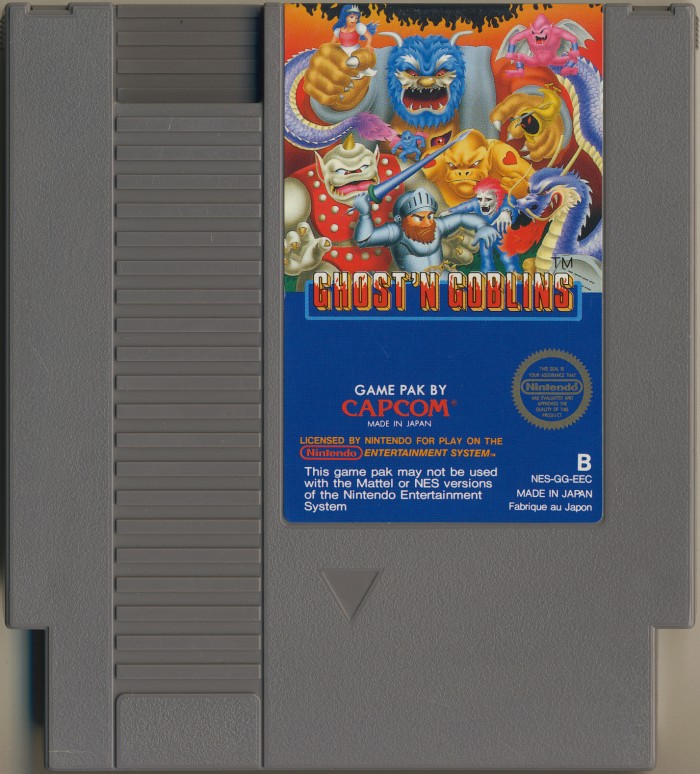

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GG-EEC |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 11 |
PCB Properties
| Name | NES-UN-ROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8904 - 8904 (3) |
| Est First Run | January 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-GG-0 PRG | 128 KB | 9369A2F8 | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Sharp | LH2307 50 | Mask ROM 128 KB | DIP-28 | 8904 D | 8904 | |
| CHR RAM | Sanyo | LC3664R-15 | SRAM 8 KB | DIP-28 | 91 L61 | 8901 | |
| CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8848 A | 8848 | |
| LS161N | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | H25 | 8825 | |
| LS32 | GoldStar | GD74HC32 | 74-32 Series | DIP-14 | H11 | 8811 |
