Release Info
| Catalog ID | NES-WP-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | November 28, 1991 |
| Publisher | Acclaim |
| Developer | Interplay |
| Players | 4 |
| Peripherals | NES Controller,4-Player Adapter |

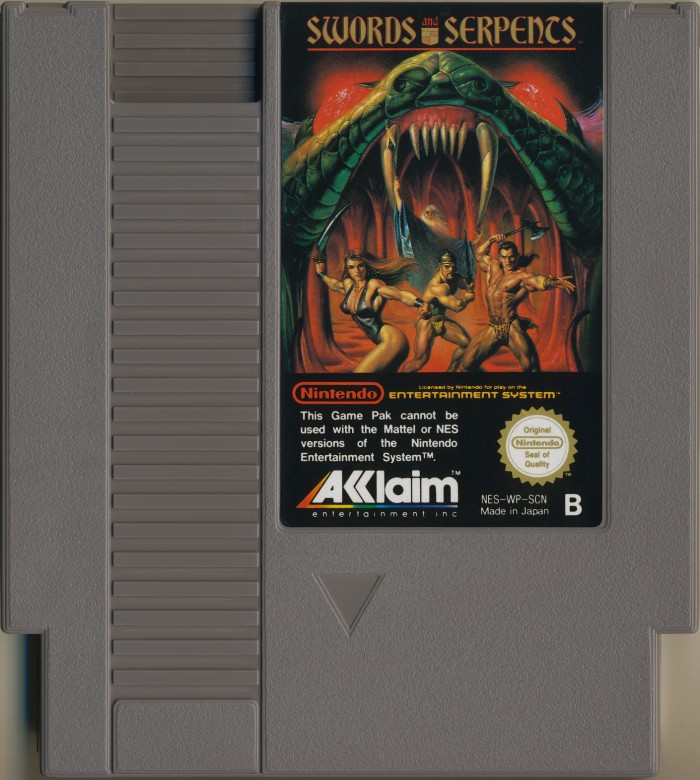

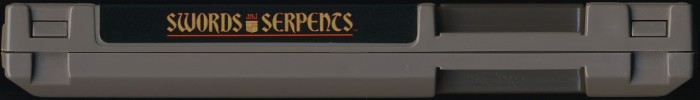

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WP-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 19 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9132 - 9133 (2) |
| Est First Run | August 1991 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-WP-0 PRG | 128 KB | D153CAF6 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G 93 | Mask ROM 128 KB | DIP-28 | 9132 E | 9132 | |
| U2 CHR RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 122 A08E | 9122 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9129 C | 9129 | |
| U4 HC161 | Motorola | MC74HC161A | 74-161 Series | DIP-16 | 9045 N A | 9045 | |
| U5 HC32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 9123 H | 9123 |
