Release Info
| Catalog ID | NES-GM-SCN |
|---|---|
| Region | Scandinavia (PAL-B) |
| Class | Licensed |
| Release Date | June 17, 1993 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 8 |
| Peripherals | NES Controller |

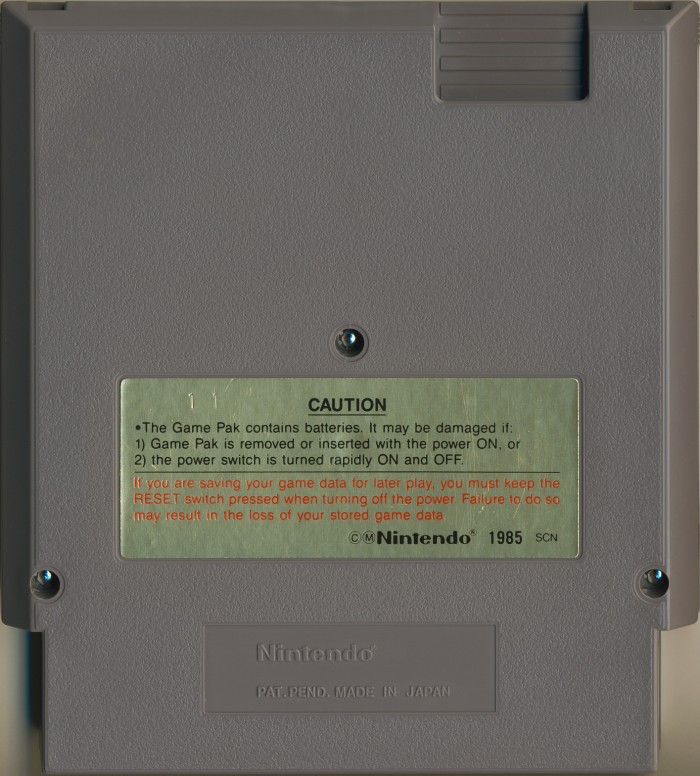

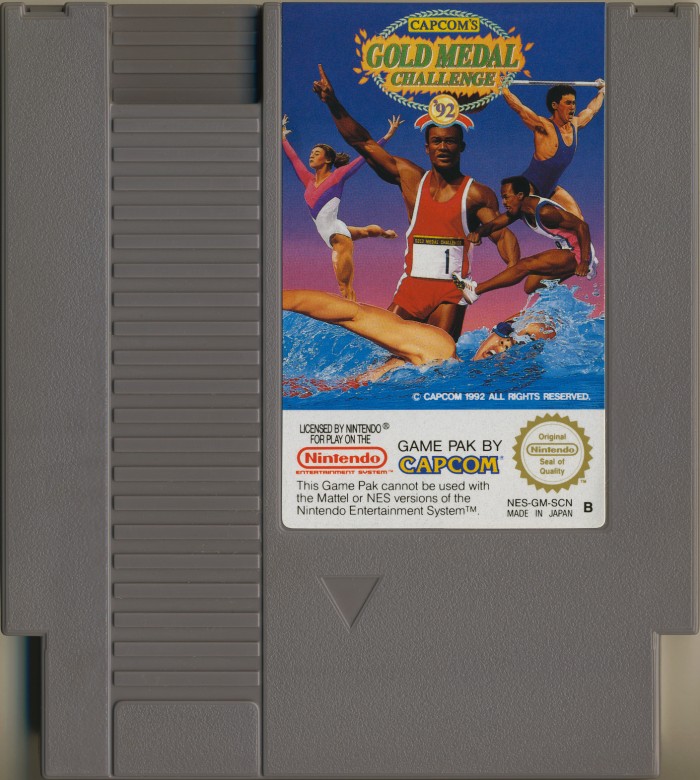

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GM-SCN |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 08 |

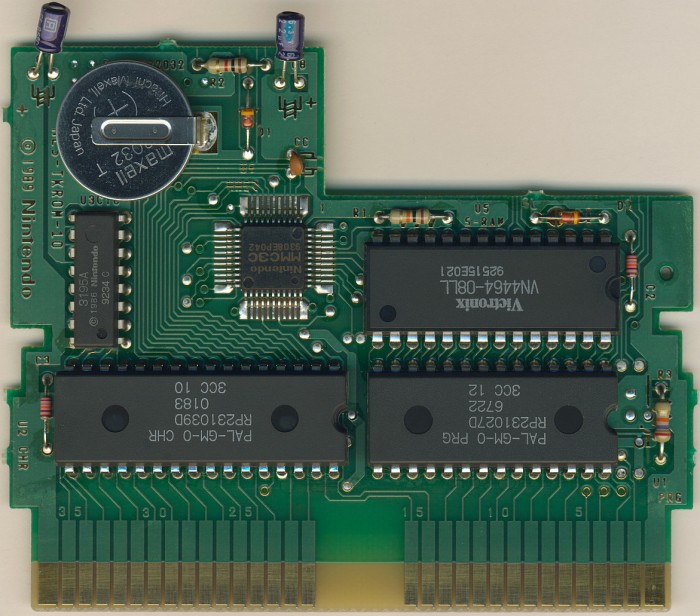

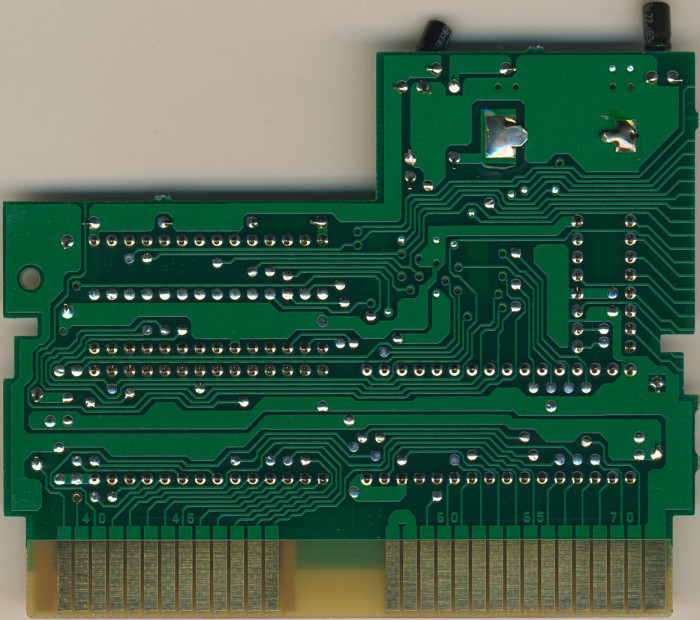

PCB Properties
| Name | NES-TKROM-10 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9309 - 9309 (2) |
| Est First Run | March 1993 |
| PCB Class | NES-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-GM-0 PRG | 128 KB | B75435E4 | 2 |
| CHR0 | PAL-GM-0 CHR | 128 KB | 3F092CDF | 3 |
| N/A | ROMs Combined | 256 KB | 1590CF62 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6722 | Mask ROM 128 KB | DIP-28 | 3CC 12 | 9309 | |
| U2 CHR | Ricoh | RP231039D 0183 | Mask ROM 128 KB | DIP-32 | 3CC 10 | 9309 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9234 C | 9234 | |
| U4 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9308 EP042 | 9308 | |
| U5 S-RAM | Victronix | VN4464-08LL | SRAM 8 KB | DIP-28 | 9251 5E021 | 9251 |
