Release Info
| Catalog ID | NES-EW-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1989 |
| Publisher | SNK |
| Developer | SNK |
| Players | 1 |
| Peripherals | NES Controller |

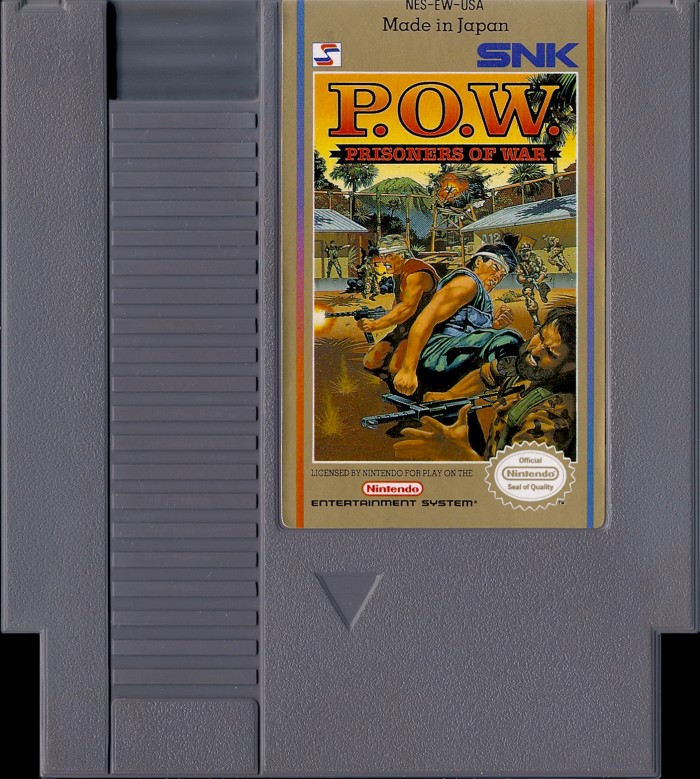

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-EW-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

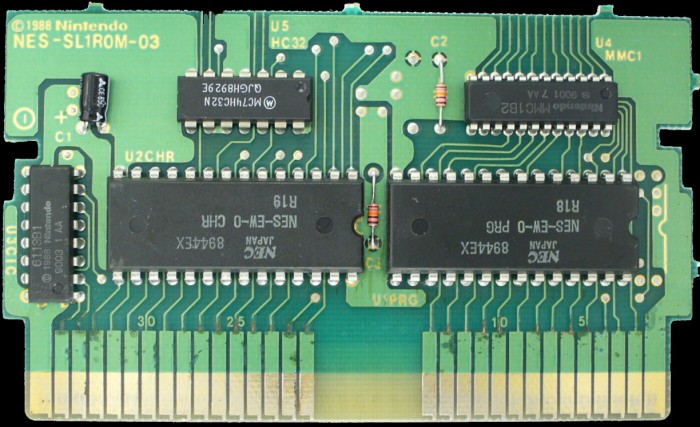

PCB Properties
| Name | NES-SL1ROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8948 - 9003 (2) |
| Est First Run | December 1989 |
| PCB Class | NES-SL1ROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-EW-0 PRG | 128 KB | A7B0BC87 | 2 |
| CHR0 | NES-EW-0 CHR | 128 KB | EB19CF1F | 4 |
| N/A | ROMs Combined | 256 KB | 75255F88 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8944 EX | 8944 | |
| U2 CHR | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8944 EX | 8944 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9003 1 AA | 9003 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9001 7 AA | 9001 | |
| U5 HC32 | Motorola | MC74HC32N | 74-32 Series | DIP-14 | 8929 QJGH | 8929 |
