Release Info
| Catalog ID | NES-NI-NOE |
|---|---|
| Region | Germany (PAL-B) |
| Class | Licensed |
| Release Date | January 26, 1993 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | NES Controller |

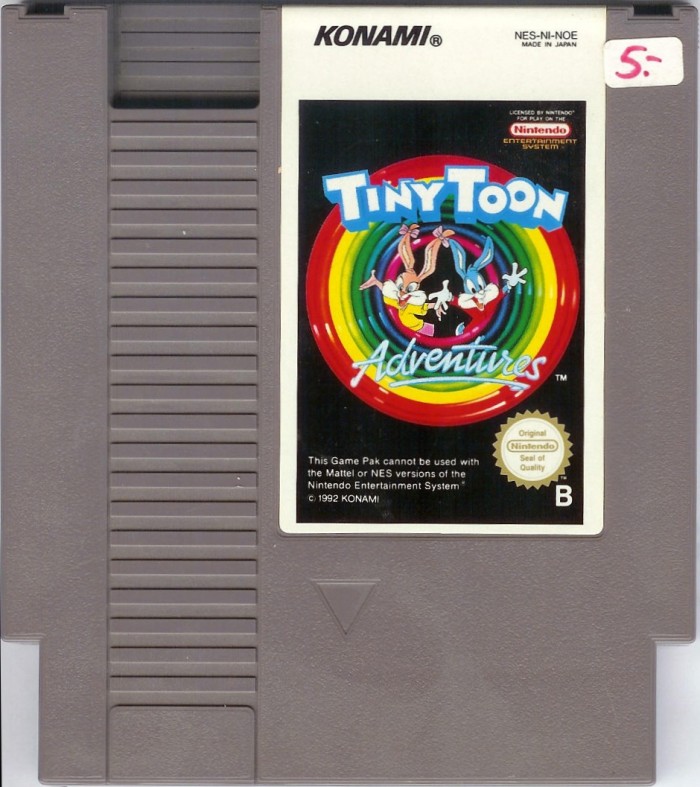

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-NI-NOE |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 12 |
PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9306 - 9409 (3) |
| Est First Run | February 1993 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-NI-0 PRG | 128 KB | D3C7F83B | 4 |
| CHR0 | PAL-NI-0 CHR | 128 KB | A6104CFD | 4 |
| N/A | ROMs Combined | 256 KB | A038AFF2 | 4 |

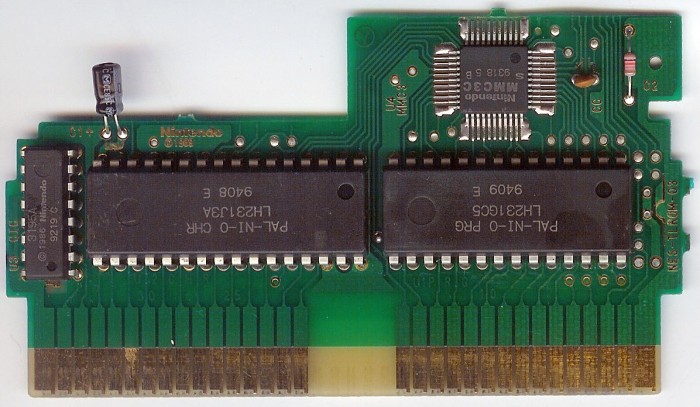

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G C5 | Mask ROM 128 KB | DIP-28 | 9409 E | 9409 | |
| U2 CHR | Sharp | LH231J 3A | Mask ROM 128 KB | DIP-32 | 9408 E | 9408 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9219 C | 9219 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9318 5 B | 9318 |
