Release Info
| Catalog ID | KDS-8G |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 15, 1991 |
| Publisher | Konami |
| Developer | Konami |
| Players | 1 |
| Peripherals | Famicom Controller |

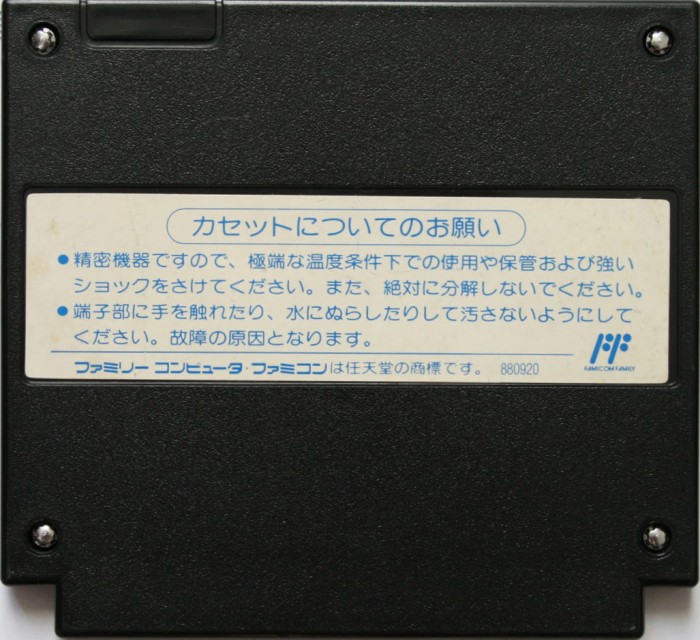

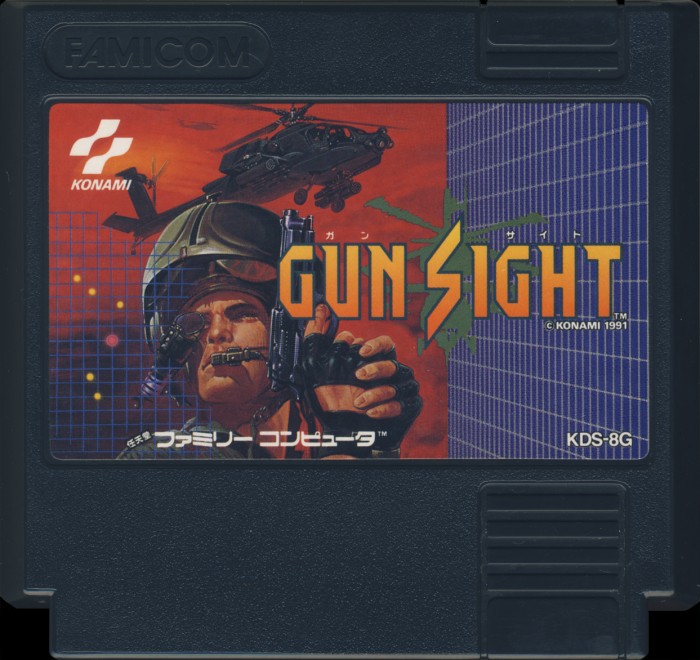

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Large w/ Famicom Logo |
| Embossed Text | |
| Front Label ID | KDS-8G |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

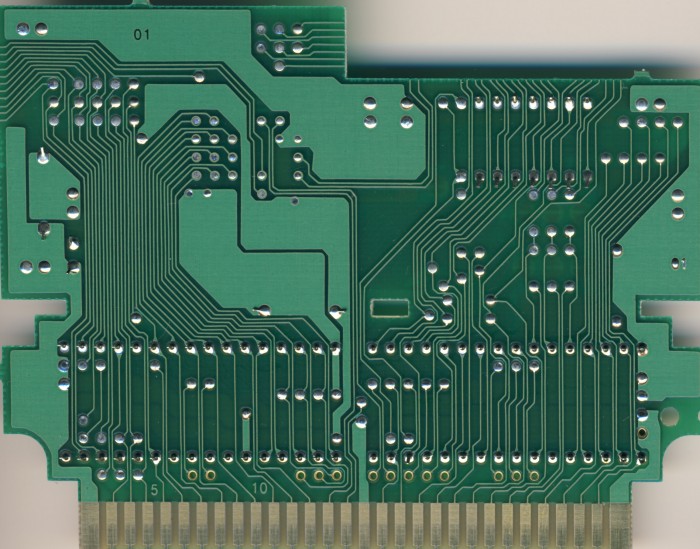

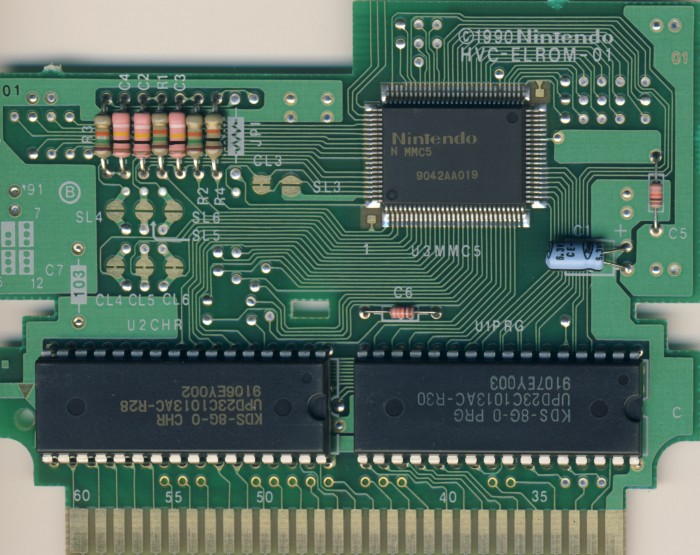

PCB Properties
| Name | HVC-ELROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9107 |
| Est First Run | February 1991 |
| PCB Class | HVC-ELROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KDS-8G-0 PRG | 128 KB | 255B129C | 1 |
| CHR0 | KDS-8G-0 CHR | 128 KB | 95A72C42 | 1 |
| N/A | ROMs Combined | 256 KB | 0AFB395E | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1013AC R30 | Mask ROM 128 KB | DIP-32 | 9107 EY003 | 9107 | |
| U2 CHR | NEC | UPD23C1013AC R28 | Mask ROM 128 KB | DIP-32 | 9106 EY002 | 9106 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9042 AA019 | 9042 |
