Release Info
| Catalog ID | BTC-M1 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 21, 1988 |
| Publisher | Bothtec (Quest) |
| Developer | Bothtec (Quest) |
| Players | 1 |
| Peripherals | Famicom Controller |

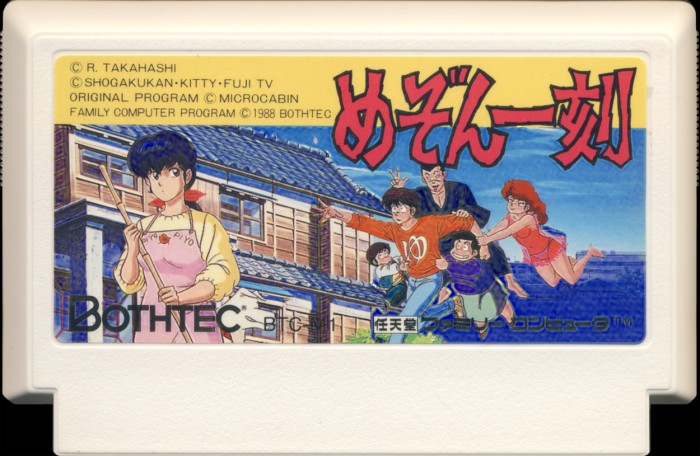

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | BTC-M1 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SNROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8839 |
| Est First Run | September 1988 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BTC-M1-0 PRG | 256 KB | 46F30F2D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 17 | Mask ROM 256 KB | DIP-32 | 8839 D | 8839 | |
| U2 W-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8838 1 DA | 8838 | |
| U3 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8832 B5 | 8832 | |
| U4 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8834 7 A | 8834 |
