Release Info
| Catalog ID | KSC-JY |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 27, 1988 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | Famicom Controller |

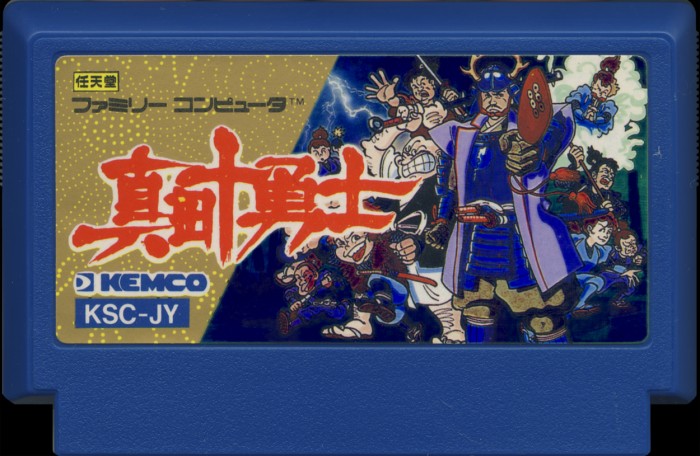

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-JY |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

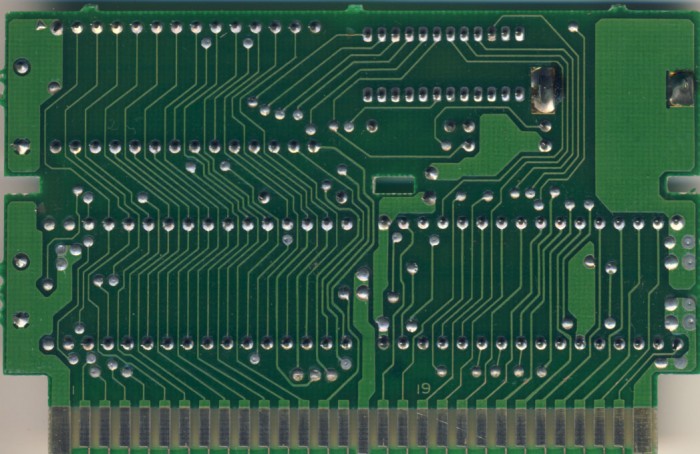

PCB Properties
| Name | HVC-SKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8824 |
| Est First Run | June 1988 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-JY-0 PRG | 128 KB | 3403B1FC | 1 |
| CHR0 | KSC-JY-0 CHR | 128 KB | F0E412CF | 1 |
| N/A | ROMs Combined | 256 KB | 0902C8F0 | 1 |

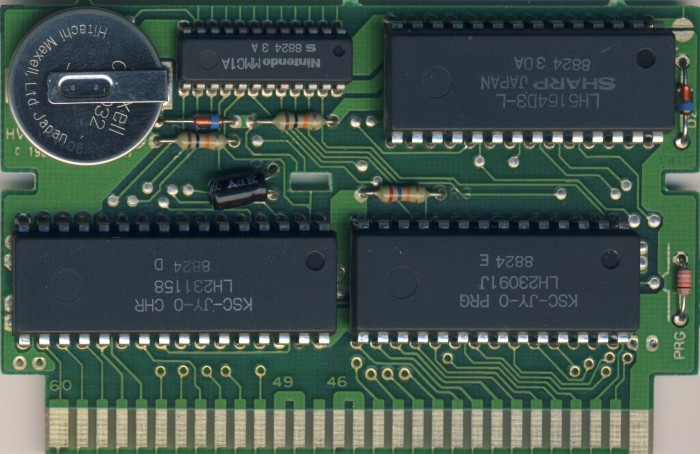

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2309 1J | Mask ROM 128 KB | DIP-28 | 8824 E | 8824 | |
| CHR | Sharp | LH2311 58 | Mask ROM 128 KB | DIP-32 | 8824 D | 8824 | |
| MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8824 3 A | 8824 | |
| W-RAM | Sharp | LH5164D3-L | SRAM 8 KB | DIP-28 | 8824 3 DA | 8824 |
