Release Info
| Catalog ID | TKS-G6 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 24, 1989 |
| Publisher | Tokyo Shoseki |
| Developer | Another |
| Players | 1 |
| Peripherals | Famicom Controller |

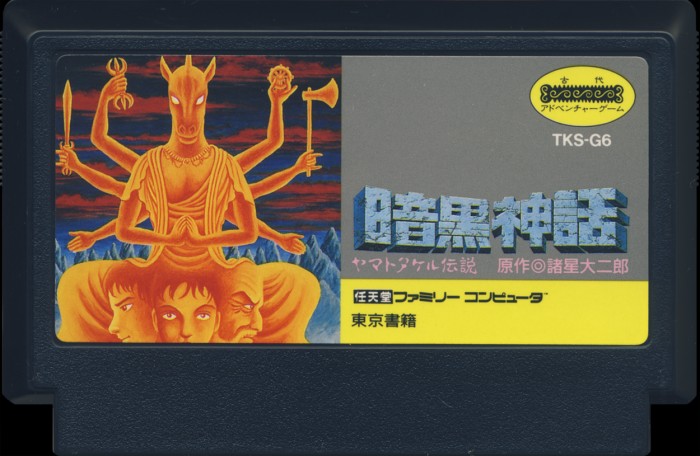

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-G6 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-SGROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8909 |
| Est First Run | March 1989 |
| PCB Class | HVC-SGROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TKS-G6-0 PRG | 256 KB | 644E312B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013 | Mask ROM 256 KB | DIP-32 | 8906 EY | 8906 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8902 M5 | 8902 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8909 1 A | 8909 |
