Release Info
| Catalog ID | PNF-4I (R70V5940) |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 25, 1992 |
| Publisher | Pony Canyon |
| Developer | Interplay |
| Players | 1 |
| Peripherals | Famicom Controller |

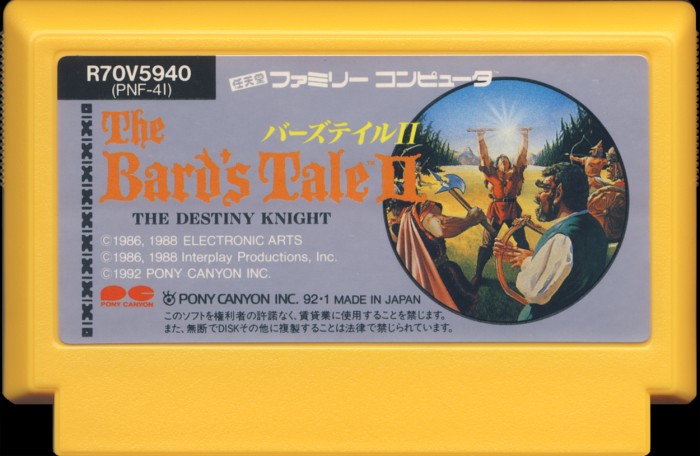

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PNF-4I |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |
PCB Properties
| Name | HVC-SNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9149 |
| Est First Run | December 1991 |
| PCB Class | HVC-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC1B3 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PNF-4I-0 PRG | 256 KB | C4E1886F | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C2013ACZ W40 | Mask ROM 256 KB | DIP-32 | 9148 EY004 | 9148 | |
| U2 CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9137 EJ | 9137 | |
| U3 MMC1 | NEC | MMC1B3 | Nintendo MMC1 | DIP-24 | 9144 B3001 | 9144 | |
| U4 W-RAM | Sharp | LH5168FB-10L | SRAM 8 KB | DIP-28 | 9149 EC | 9149 |
