Release Info
| Catalog ID | CAP-1N |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 5, 1992 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 8 |
| Peripherals | Famicom Controller |

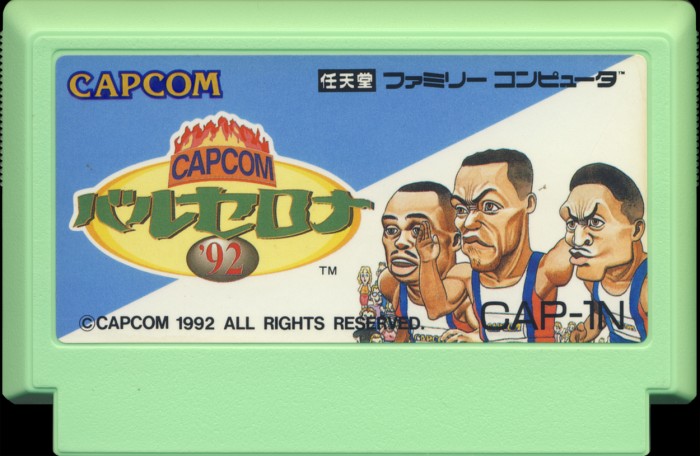

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-1N |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

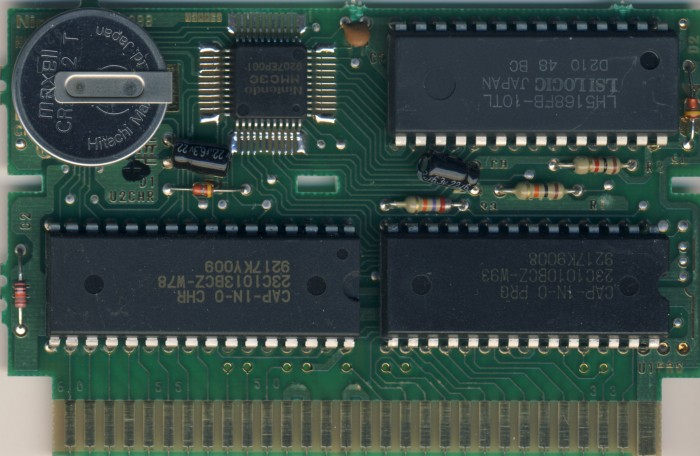

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9217 |
| Est First Run | April 1992 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-1N-0 PRG | 128 KB | 3BC3A97B | 1 |
| CHR0 | CAP-1N-0 CHR | 128 KB | 586B69FB | 1 |
| N/A | ROMs Combined | 256 KB | CB5ACB49 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | 23C1010BCZ W93 | Mask ROM 128 KB | DIP-28 | 9217 K9008 | 9217 | |
| U2 CHR | NEC | 23C1013BCZ W78 | Mask ROM 128 KB | DIP-32 | 9217 KY009 | 9217 | |
| U3 MMC3 | NEC | MMC3C | Nintendo MMC3 | TQFP-44 | 9207 EP001 | 9207 | |
| U4 W-RAM | LSI Logic | LH5168FB-10TL | SRAM 8 KB | DIP-28 | 210 D | 9210 |
