Release Info
| Catalog ID | HAL-SB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 24, 1987 |
| Publisher | HAL Laboratory |
| Developer | Williams Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

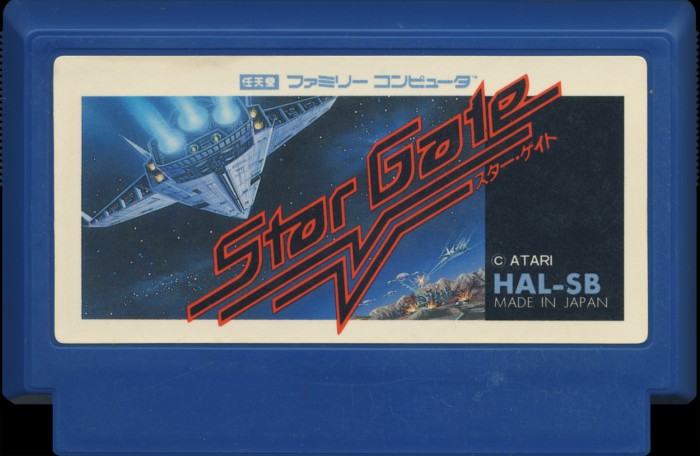

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HAL-SB |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 17 |

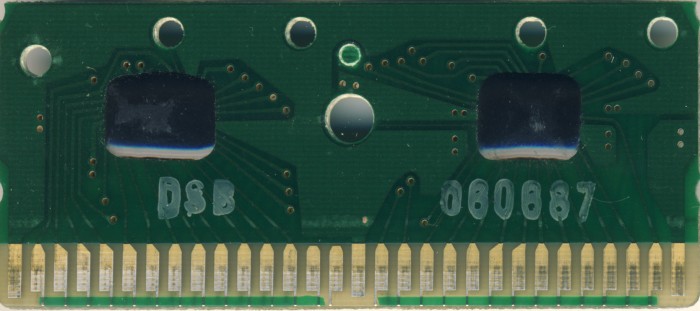

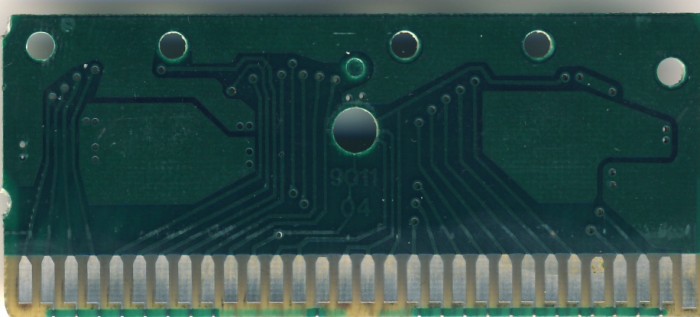

PCB Properties
| Name | 9011-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | |
| Est First Run | |
| PCB Class | HVC-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | 13556927 | 1 |
| CHR0 | Not Present | 8 KB | 3FF14826 | 1 |
| N/A | ROMs Combined | 24 KB | 493BD2FF | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | _UnkMfg17 | DSB | Chip-on-Board PCB | PCB | 060687 | ||
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
