Release Info
| Catalog ID | PAC-PL |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 10, 1988 |
| Publisher | Pack-In-Video |
| Developer | KLON |
| Players | 1 |
| Peripherals | Famicom Controller |

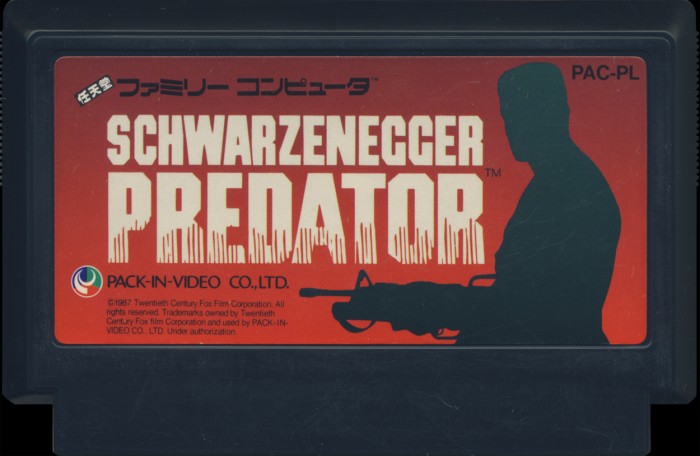

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | PAC-PL |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 09 |

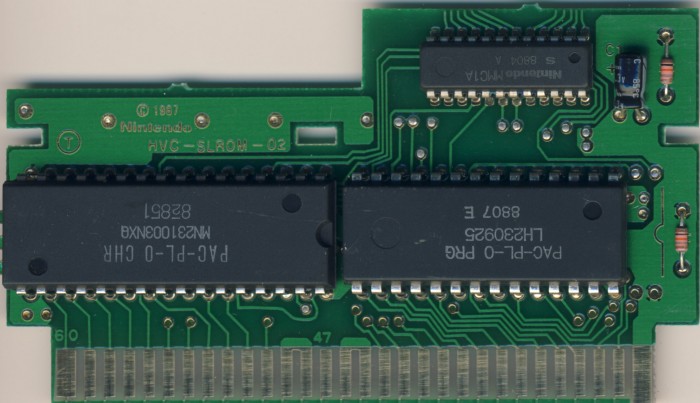

PCB Properties
| Name | HVC-SLROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8807 |
| Est First Run | February 1988 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAC-PL-0 PRG | 128 KB | FE37B30D | 1 |
| CHR0 | PAC-PL-0 CHR | 128 KB | DD7B0414 | 1 |
| N/A | ROMs Combined | 256 KB | 4ED3C6F1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Sharp | LH2309 25 | Mask ROM 128 KB | DIP-28 | 8807 E | 8807 | ||
| Panasonic | MN231003 NXQ | Mask ROM 128 KB | DIP-32 | 8 51 | 8806 | ||
| Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8804 A | 8804 |
