Release Info
| Catalog ID | NAM-FPZ-5800 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | September 22, 1992 |
| Publisher | Namco |
| Developer | Birthday |
| Players | 1 |
| Peripherals | Famicom Controller |

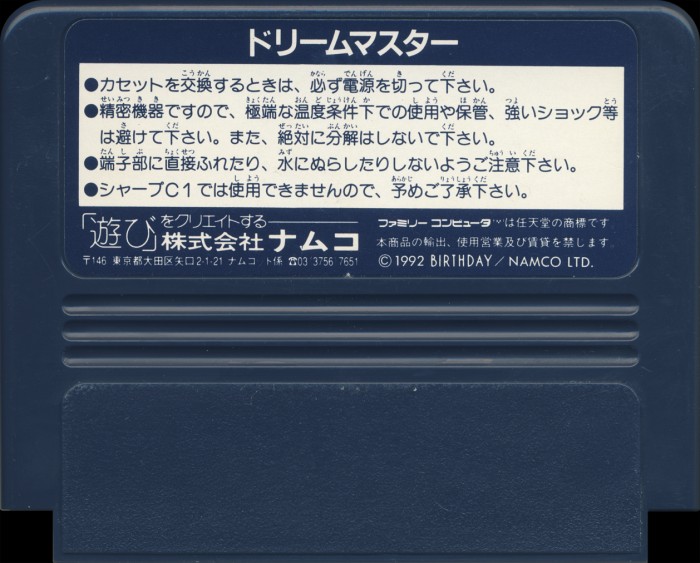

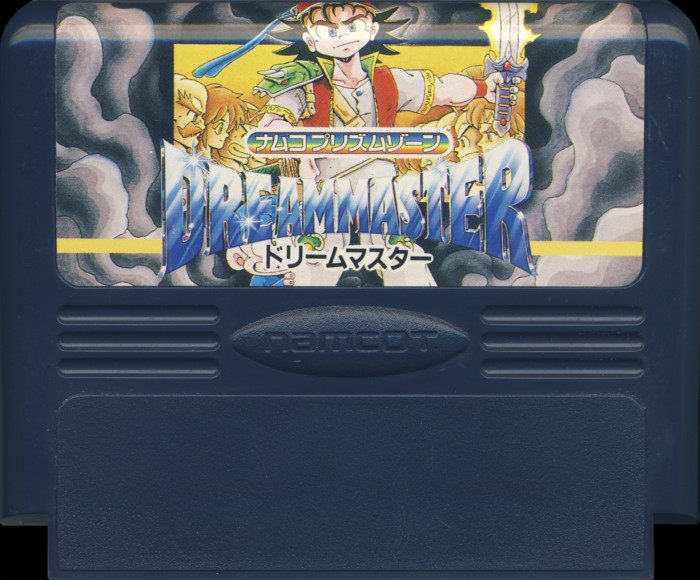

Cart Properties
| Cart Producer | |
|---|---|
| Color | Blue |
| Form Factor | Large |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

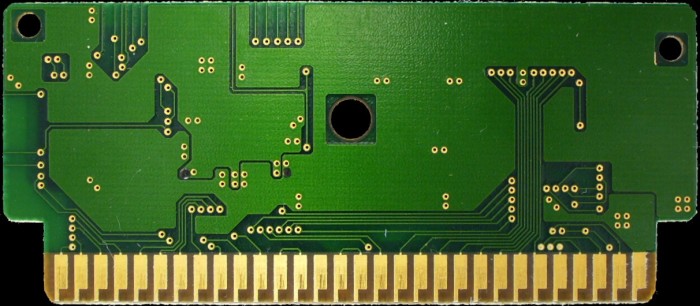

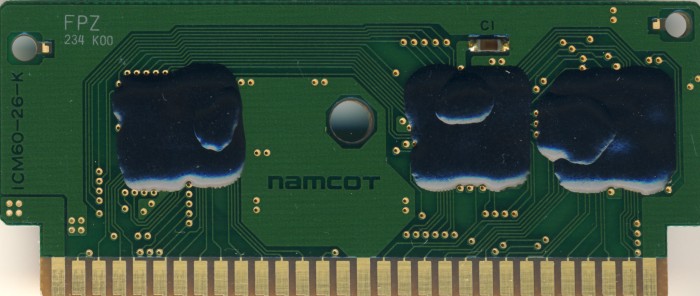

PCB Properties
| Name | ICM60-26-K |
|---|---|
| PCB Producer | |
| Manufacturer | Fujitsu |
| Mfg Range | 9234 - 9234 (2) |
| Est First Run | August 1992 |
| PCB Class | NAMCOT-340 |
| iNES Mapper | 210 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 340 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 256 KB | 8BC2EC0C | 2 |
| CHR0 | Not Present | 256 KB | D6AD7AE1 | 2 |
| N/A | ROMs Combined | 512 KB | BD523011 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Fujitsu | FPZ | Chip-on-Board PCB | PCB | 234 K00 | 9234 | |
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP2000 | Bonded ROM 256 KB | EPOXY | ||||
| __Unknown | EP340 | Namcot 340 | EPOXY |
