Release Info
| Catalog ID | MGC-010 |
|---|---|
| Region | Spain (PAL) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Gluk Video |
| Developer | Idea-Tek |
| Players | 2 |
| Peripherals | NES Controller |

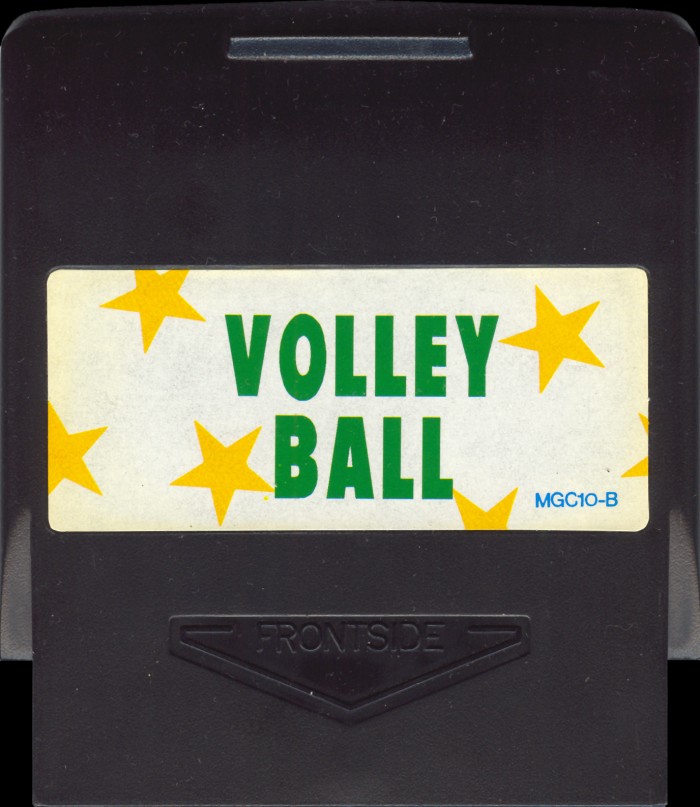

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | |
| Embossed Text | |
| Front Label ID | MGC10-B |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

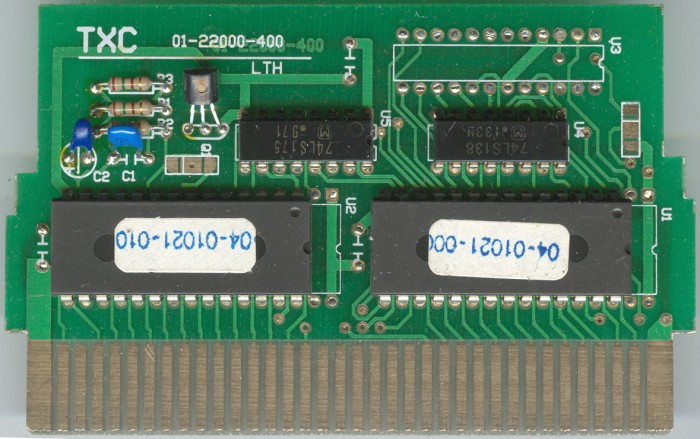

PCB Properties
| Name | 01-22000-400 |
|---|---|
| PCB Producer | |
| Manufacturer | Not Specified |
| Mfg Range | 9111 |
| Est First Run | March 1991 |
| PCB Class | TXC-74*138/175 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx175 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 04-01021-000 | 32 KB | 42812DAE | 1 |
| CHR0 | 04-01021-010 | 32 KB | 382E6A7B | 1 |
| N/A | ROMs Combined | 64 KB | A23CB659 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Macronix | MX27C256-15 | PROM 32 KB | DIP-28 | |||
| U2 | Macronix | MX27C256-15 | PROM 32 KB | DIP-28 | |||
| U4 | Matsushita | 74LS138 | 74-138 Series | DIP-16 | .133 N_ | 9111 | |
| U5 | Matsushita | 74LS175 | 74-175 Series | DIP-16 | .971 | 8928 |
