Release Info
| Catalog ID | FT-02 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 23, 1986 |
| Publisher | Bandai |
| Developer | Human Entertainment |
| Players | 2 |
| Peripherals | Family Trainer Mat |

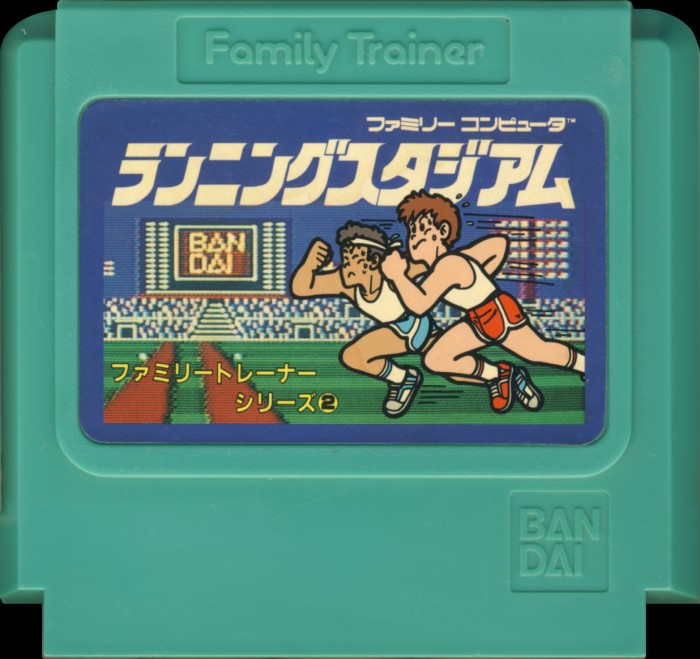

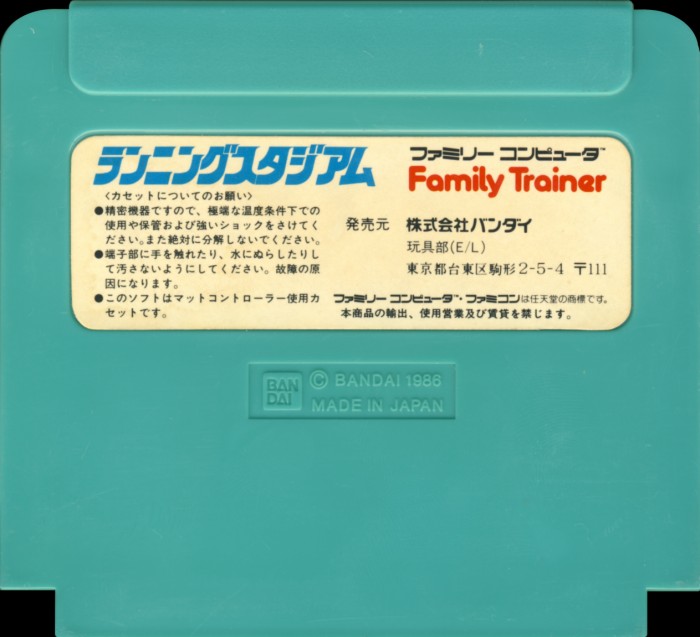

Cart Properties
| Cart Producer | Bandai |
|---|---|
| Color | Light Green |
| Form Factor | Large |
| Embossed Text | © Bandai 19xx Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

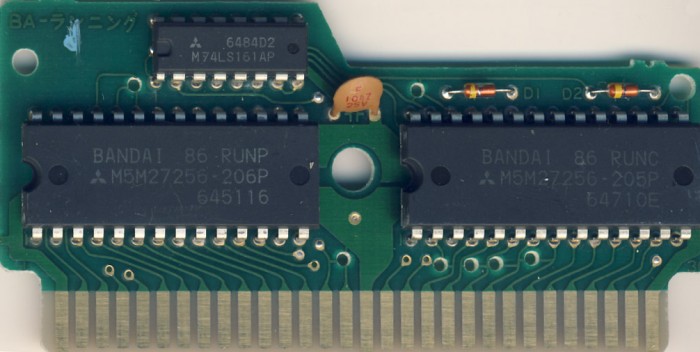

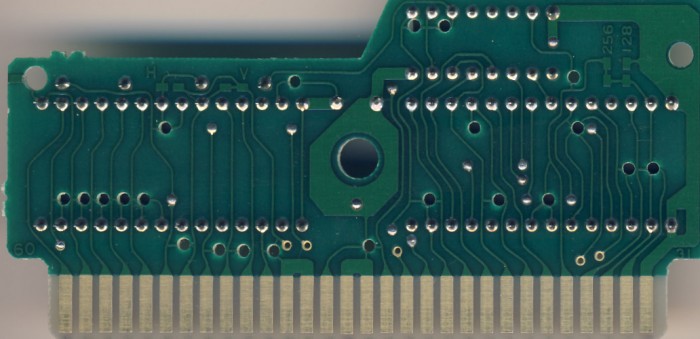

PCB Properties
| Name | BA-ランニング |
|---|---|
| PCB Producer | Bandai |
| Manufacturer | Not Specified |
| Mfg Range | 8648 |
| Est First Run | December 1986 |
| PCB Class | BANDAI-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | BANDAI 86 RUNP | 32 KB | 8A5B72C0 | 1 |
| CHR0 | BANDAI 86 RUNC | 32 KB | 36FB98CF | 1 |
| N/A | ROMs Combined | 64 KB | EA90F3E2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Mitsubishi | M5M27256 206P | PROM 32 KB | DIP-28 | 645 116 | 8645 | ||
| Mitsubishi | M5M27256 205P | PROM 32 KB | DIP-28 | 647 10E | 8647 | ||
| Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 648 4D2 | 8648 |
