Release Info
| Catalog ID | TKS-XG |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | October 5, 1990 |
| Publisher | Tonkin House |
| Developer | Compile |
| Players | 1 |
| Peripherals | Famicom Controller |

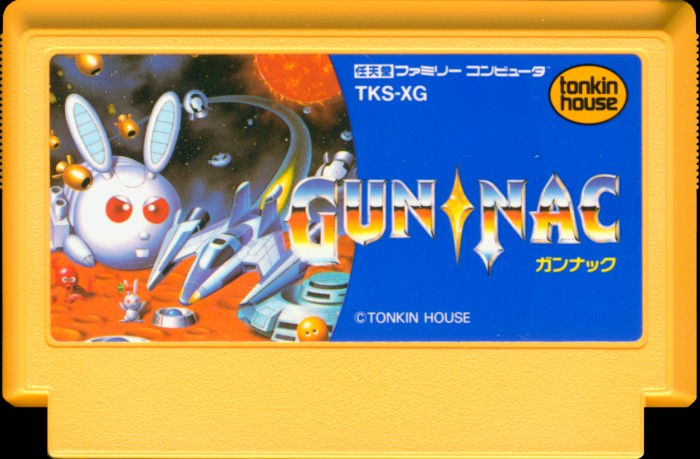

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Orange |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | TKS-XG |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | TL-01A |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Mfg17 |
| Mfg Range | 9030 - 9030 (2) |
| Est First Run | July 1990 |
| PCB Class | HVC-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | A0B8D310 | 2 |
| CHR0 | Not Present | 128 KB | 7BCBC3FC | 1 |
| N/A | ROMs Combined | 256 KB | D9084936 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|

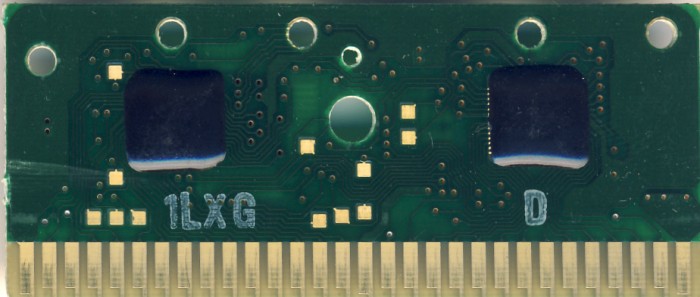

| PCB | _UnkMfg17 | 1LXG | Chip-on-Board PCB | PCB | D | ||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||
| __Unknown | EP1000 | Bonded ROM 128 KB | EPOXY | ||||

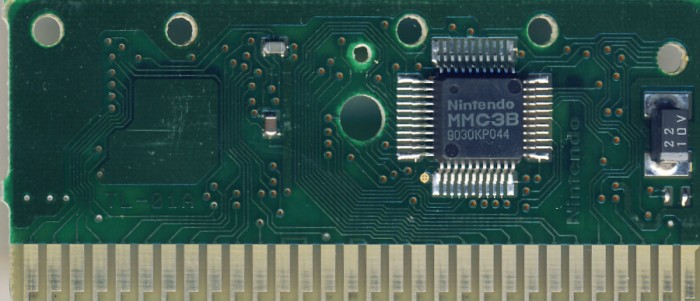

| NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9030 KP044 | 9030 |
