Release Info
| Catalog ID | ANG-KA |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | January 22, 1993 |
| Publisher | Angel |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

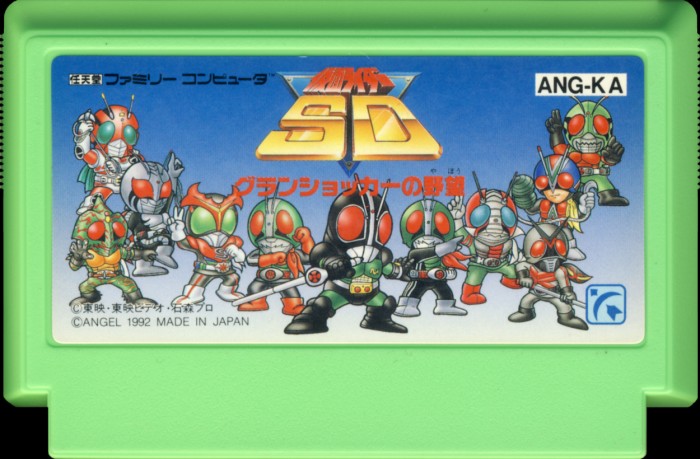

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | ANG-KA |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

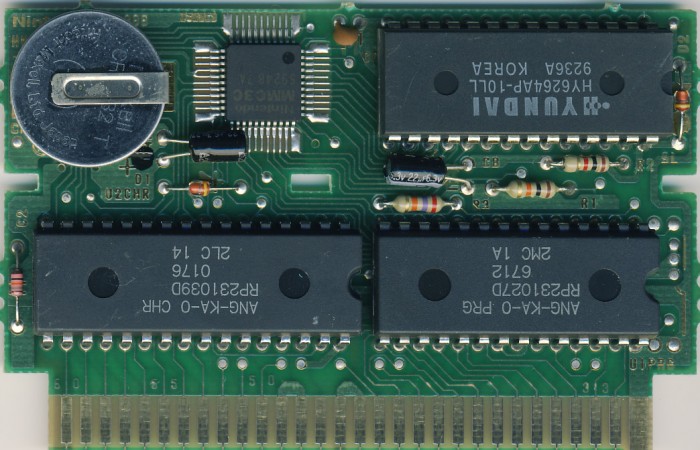

PCB Properties
| Name | HVC-TKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9249 |
| Est First Run | December 1992 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ANG-KA-0 PRG | 128 KB | 4EE69E3D | 1 |
| CHR0 | ANG-KA-0 CHR | 128 KB | 1E412648 | 1 |
| N/A | ROMs Combined | 256 KB | 2A1919FE | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6712 | Mask ROM 128 KB | DIP-28 | 2MC 1A | 9249 | |
| U2 CHR | Ricoh | RP231039D 0176 | Mask ROM 128 KB | DIP-32 | 2LC 14 | 9245 | |
| U3 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9248 7 A | 9248 | |
| U4 W-RAM | Hyundai | HY6264AP-10LL | SRAM 8 KB | DIP-28 | 9236 A | 9236 |
